Product Summary

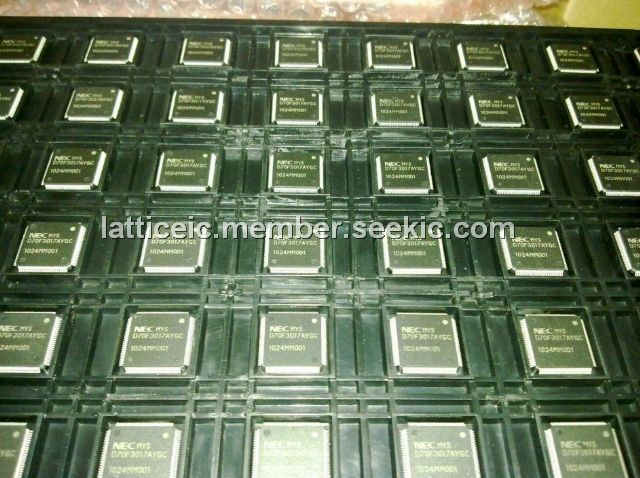

The UPD70F3017AYGC-8EU is a on-chip flash memory. Because the device can be programmed by the user on-board, it is ideal for the evaluation stages of system development, small-scale production of a variety of products, and rapid development of new products. The UPD70F3017AYGC-8EU provides a high-level cost performance ideal for applications ranging from low-power camcorders and other AV equipment to portable telephone equipment such as cellular phones and personal handyphone systems (PHS). It is used in low-power portable devices, cellular phones, PHSs, and camcorders.
Parametrics
UPD70F3017AYGC-8EU absolute maximum ratings: (1)Supply voltage VDD: -0.5 to +4.6 V; AVDD: -0.5 to +4.6 V; BVDD: -0.5 to +4.6 V; AVSS: -0.5 to +0.5 V; BVSS: -0.5 to +0.5 V; (2)Input voltage VI1: -0.5 to VDD + 0.5 V; VI2: -0.5 to BVDD + 0.5 V; VI3: -0.5 to +8.5 V; (3)On the conditions of normal operating mode, Operating ambient temperature TA: -40 to +85 ℃; On the conditions of flash memory programming mode TA: 10 to 40 ℃; (4)Storage temperature Tstg: -40 to +125 ℃.
Features
UPD70F3017AYGC-8EU features: (1)General-purpose registers: 32 bits × 32 registers; (2)Instruction set: Signed multiplication, saturation operations, 32-bit shift instructions, bit manipulation instructions, load/store instructions; (3)Memory space: 16 MB linear address space; Memory block division function: 2 MB per block; (4)External bus interface: 16-bit data bus Address bus: Separate output enabled; (5)Internal memory Flash memory: 256 KB; RAM: 8 KB.

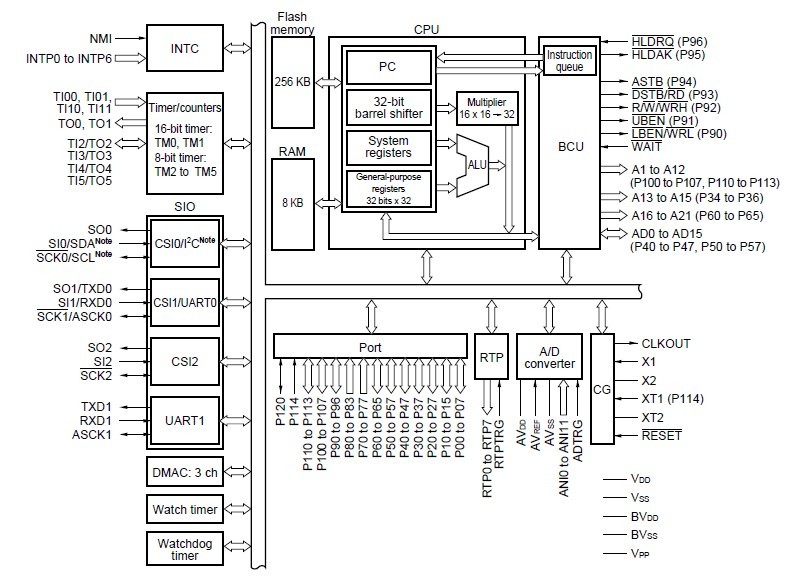

Diagrams
 |
