Product Summary
The CM100DY-24H is a Dua IGBT Module. It is designed for use in switching applications. The CM100DY-24H consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode.
Parametrics
CM100DY-24H absolute maximum ratings: (1)Junction Temperature Tj: –40℃ to 150℃; (2)Storage Temperature Tstg: –40℃ to 125℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (TC = 25℃) IC: 100 Amperes; (6)Peak Collector Current ICM: 200 Amperes; (7)Emitter Current** (TC = 25℃) IE: 100 Amperes; (8)Peak Emitter Current IEM: 200 Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃) Pc: 780 Watts.
Features
CM100DY-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery(135ns) Free-Wheel Diode; (4)High Frequency Operation(20-25kHz); (5)Isolated Baseplate for Easy Heat Sinking.

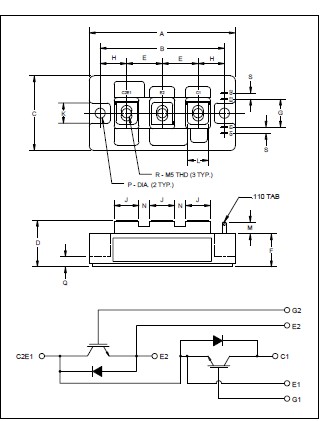

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM100DY-24H |
|
IGBT MOD DUAL 1200V 100A H SER |
Data Sheet |
Negotiable |
|
||||||
