Product Summary

The CM150DY-24H is a member of the Dual IGBTMOD NF-Series Modules. It is designed for use in switching applications. The CM150DY-24H consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode.

Parametrics

CM100DY-24NF absolute maximum ratings: (1)Junction Temperature Tj: –40℃ to 150℃; (2)Storage Temperature Tstg: –40℃ to 125℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (TC = 25℃) IC: 100 Amperes; (6)Peak Collector Current ICM: 200 Amperes; (7)Emitter Current (TC = 25℃) IE: 100 Amperes; (8)Peak Emitter Current IEM: 200 Amperes; (9)Maximum Collector Dissipation (TC = 25℃) Pc: 650 Watts.

Features

CM100DY-24NF features: (1)IC: 100A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

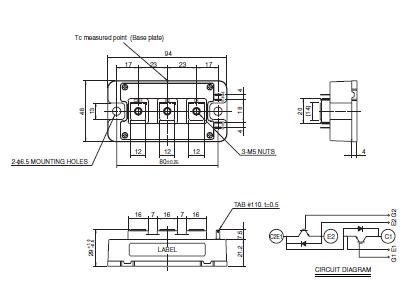

CM100DY-24NF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

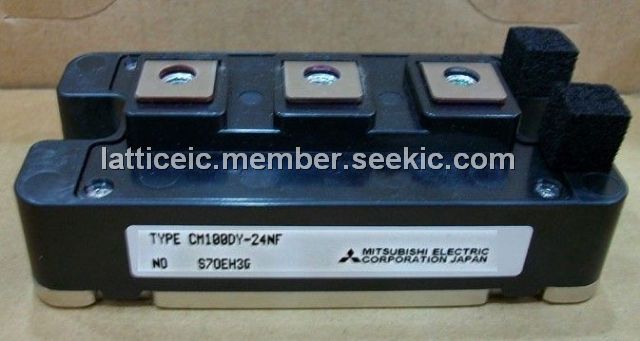

CM100DY-24NF
CM100DY-24NF

IGBT MOD DUAL 1200V 100A NF SER
Data Sheet
0-1: $60.38
1-10: $56.61
10-100: $50.95
100-250: $49.06
250-500: $48.31
500-1000: $46.04
1000-2500: $45.29
