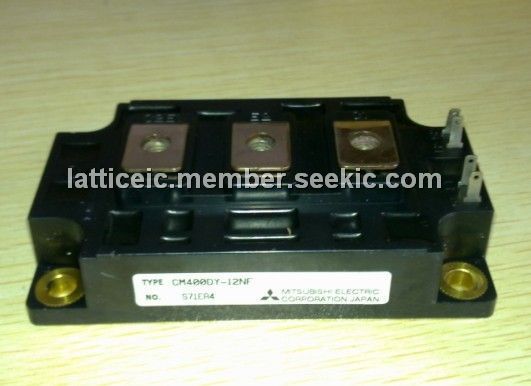

Product Summary

The CM400DY-12NF is a Mitsubishi IGBT module. It is suitable for General purpose inverters & Servo controls, etc.

Parametrics

CM400DY-12NF absolute maximum ratings: (1)Collector-emitter voltage: 600 V; (2)Gate-emitter voltage: ±20V; (3)Collector current: 400A; (4)Emitter current: 400A; (5)Maximum collector dissipation: 1130W; (6)Junction temperature: -40 to +150℃; (7)Storage temperature: -40 to +125℃; (8)Isolation voltage: 2500V.

Features

CM400DY-12NF features: (1)IC: 400A; (2)VCES: 600V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

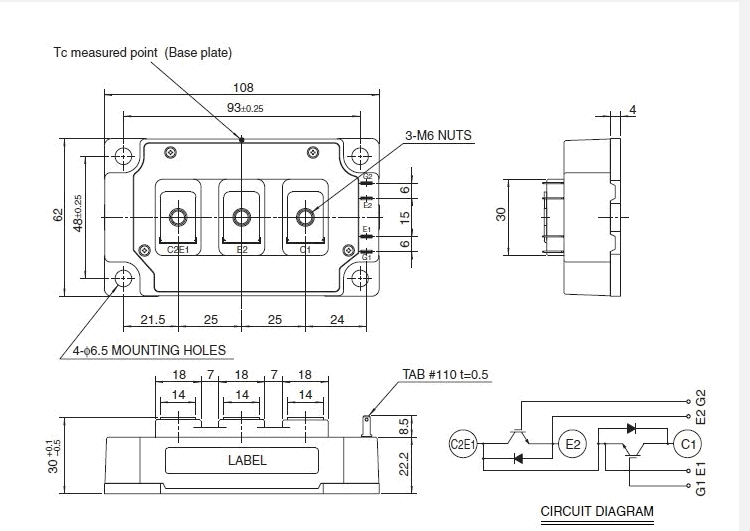

CM400DY-12NF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM400DY-12NF
CM400DY-12NF

IGBT MOD DUAL 600V 400A NF SER
Data Sheet
0-1: $112.12
1-10: $106.70
10-100: $100.52
100-250: $98.97
250-500: $96.65
500-1000: $92.79
