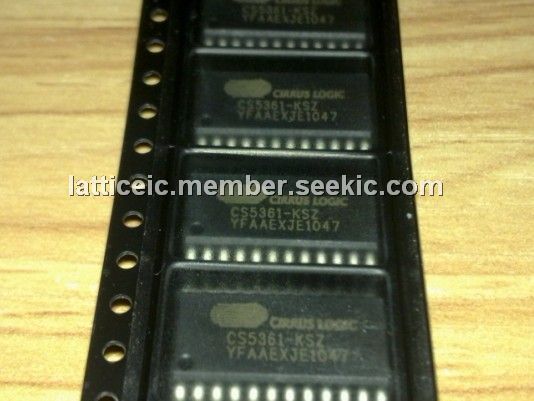

Product Summary

The CS5361-KSZ is a complete analog-to-digital converter for digital audio systems. It performs sampling, analog-todigital conversion, and anti-alias filtering. The CS5361-KSZ generates 24-bit values for both left and right inputs in serial form at sample rates up to 192 kHz per channel.

Parametrics

CS5361-KSZ absolute maximum ratings: (1)DC Power Supplies: Analog: -0.3 to +6.0 V, Logic: -0.3 to +6.0 V, Digital: -0.3 to +6.0 V; (2)Input Current: -10 to +10 mA; (3)Analog Input Voltage: - 0.7 to VA + 0.7 V; (4)Digital Input Voltage: -0.7 to VL + 0.7 V; (5)Ambient Operating Temperature (Power Applied): -50 to +95 ℃; (6)Storage Temperature: -65 to +150 ℃.

Features

CS5361-KSZ features: (1)Advanced Multi-bit Delta-sigma Architecture; (2)24-bit Conversion; (3)114 dB Dynamic Range; (4)-105 dB THD+N; (5)System Sampling Rates up to 192 kHz; (6)135 mW Power Consumption; (7)High-pass Filter and DC Offset Calibration; (8)Supports Logic Levels Between 5 and 2.5 V; (9)Differential Analog Architecture; (10)Overflow Detection; (11)Pin-compatible with the CS5381.

Diagrams

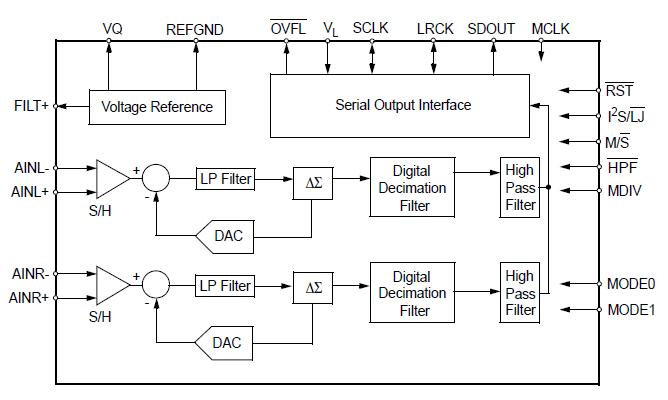

CS5361-KSZ block diagram
