Product Summary

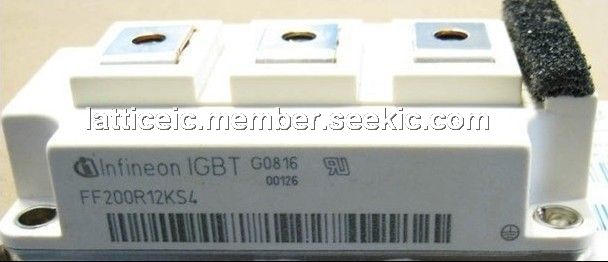

The FF200R12KS4 is a 62mm C-Series module with the fast IGBT2 for high-frequency switching.

Parametrics

FF200R12KS4 absolute maximum ratings: (1)collector-emitter voltage: 1200 V; (2)DC-collector current: 275 A; (3)repetitive peak collector current: 400 A; (4)total power dissipation: 1400 W; (5)gate-emitter peak voltage: ± 20 V.

Features

FF200R12KS4 features: (1)High short circuit capability, self limiting short circuit current; (2)Low switching losses; (3)Unbeatable robustness; (4)VCEsat with positive temperature coefficient; (5)Package with CTI ＞ 400; (6)High creepage and clearance distances; (7)Isolated base plate; (8)Copper base plate; (9)Standard housing.

Diagrams

FF200R12KS4 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF200R12KS4
FF200R12KS4
Infineon Technologies
IGBT Modules 1200V 200A DUAL
Data Sheet
0-6: $97.09
6-10: $87.38
