Product Summary

The FF450R12ME3 is an EconoDUAL module with trench/fieldstop IGBT3 and EmCon High Efficiency diode.

Parametrics

FF450R12ME3 absolute maximum ratings: (1)collector-emitter voltage: 1200 V; (2)DC-collector current: 600 A; (3)repetitive peak collector current: 900 A; (4)total power dissipation: 2100 W; (5)gate-emitter peak voltage: ± 20 V.

Features

FF450R12ME3 features: (1)collector-emitter saturation voltage: 2.00V; (2)gate threshold voltage: 5.0 to 6.5 V; (3)internal gate resistor: 1.7 Ω; (4)input capacitance: 32.0 nF; (5)reverse transfer capacitance: 1.50 nF.

Diagrams

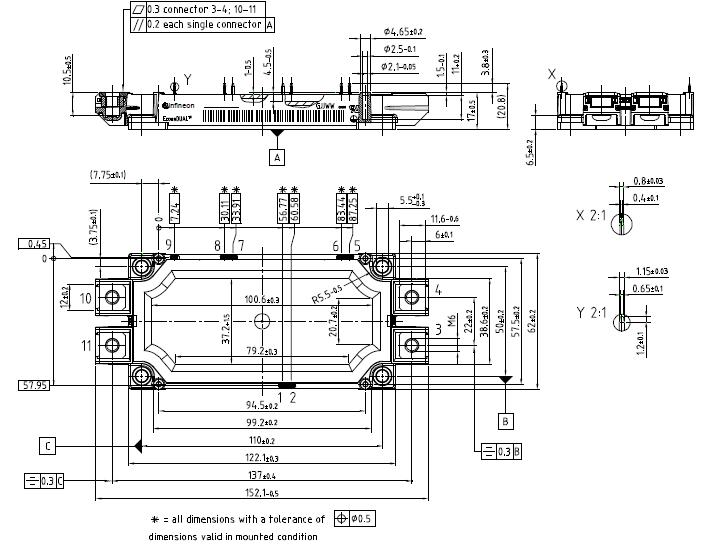

FF450R12ME3 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF450R12ME3
FF450R12ME3
Infineon Technologies
IGBT Modules N-CH 1.2KV 600A
Data Sheet
0-6: $140.45
6-10: $126.40
