Product Summary

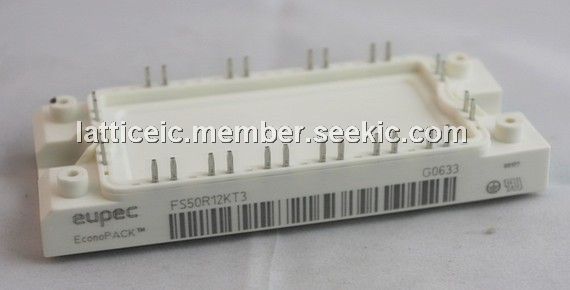

The FS50R12KT3 is an IGBT module.

Parametrics

FS50R12KT3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 50A; (3)repetitive peak collector current, ICRM: 100A; (4)total power dissipation, Ptot 280W; (5)gate-emitter peak voltage, VGES: +/-20V.

Features

FS50R12KT3 features: (1)forward voltage ,VF: 1.65V; (2)peak reverse recovery current, IRM: 67A; (3)recovery charge, Qr: 5.60μC; (4)reverse recovery enery, Erec: 2.20mJ; (5)thermal resistance, junction to case, RthJC: 0.75K/W.

Diagrams

FS50R12KT3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS50R12KT3
FS50R12KT3
Infineon Technologies
IGBT Modules N-CH 1.2KV 75A
Data Sheet
0-6: $58.09
6-10: $52.81
