Product Summary

The FZ600R12KS4 is an IGBT module.

Parametrics

FZ600R12KS4 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 600A; (3)repetitive peak collector current, ICRM: 1200A; (4)total power dissipation, Ptot: 3900W; (5)gate-emitter peak voltage, VGES: +/-20V.

Features

FZ600R12KS4 features: (1)collector-emitter saturation voltage: 3.20V; (2)gate threshold volatge: 5.5V; (3)input capacitance: 39nF; (4)collector-emitter cut-off current: 5mA.

Diagrams

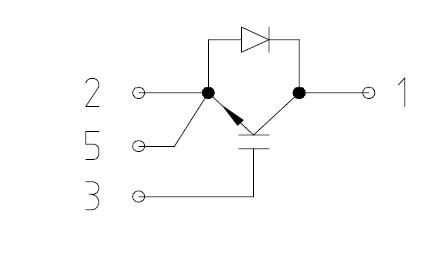

FZ600R12KS4 block diagram
