Product Summary
The HFA320NJ40C is an Ultrafast Soft Recovery Diode. It is optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.
Parametrics
HFA320NJ40C absolute maximum ratings: (1)VR Cathode-to-Anode Voltage: 400 V; (2)IF @ TC = 25℃ Continuous Forward Current: 321 A; (3)IF @ TC = 100℃ Continuous Forward Current: 160 A; (4)IFSM Single Pulse Forward Current: 1200 A; (5)EAS Non-Repetitive Avalanche Energy: 1.4 mJ; (6)PD @ TC = 25℃ Maximum Power Dissipation: 625 W; (7)PD @ TC = 100℃ Maximum Power Dissipation: 250 W; (8)TJ Operating Junction and TSTG Storage Temperature Range: -55℃ to +150℃.
Features
HFA320NJ40C featues: (1)reduced RFI and EMI; (2)reduced snubbing; (3)extensive characterization of recovery parameters.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

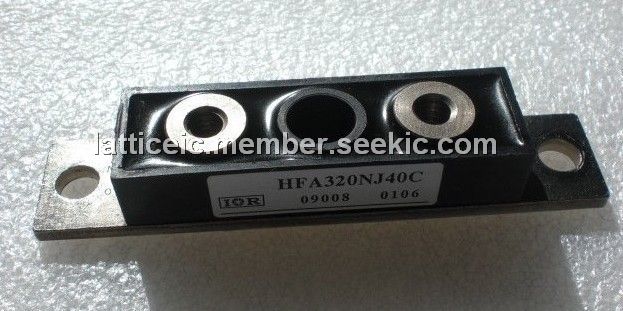

 HFA320NJ40C |
|
DIODE HEXFRED 400V 321A TO-244AB |
Data Sheet |
Negotiable |
|
||||
|
HFA320NJ40CPbF |
Other |
|
Data Sheet |
Negotiable |
|
||||
