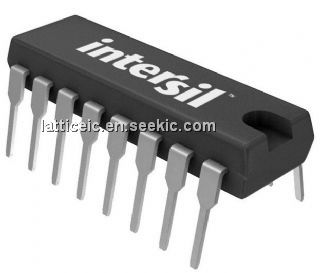

HIN202CPZ

RS-232 transmitter, 0.1μF, ±12V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.60 / Piece
51 ~ 500 :	0.45 / Piece
501 ~ 5000 :	0.30 / Piece

PartNumber:: HIN202CPZ

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-18

From Other Seller

Part Number:HIN202CPZ
US $0.30 - 0.60
Quantity:

piece

Product Summary

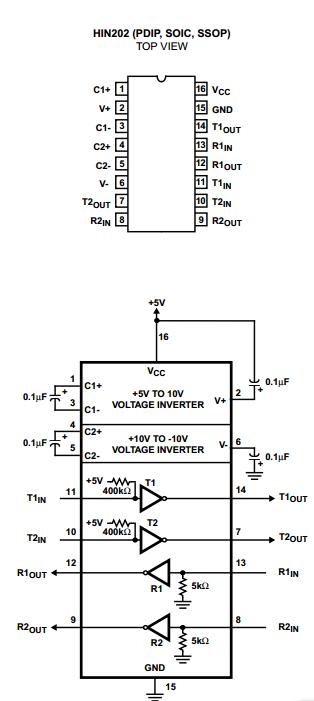

The HIN202CPZ is a RS-232 transmitter/receiver interface circuit which meets all ElA RS-232E and V.28 speciﬁcations, and are particularly suited for those applications where ±12V is not available. They require a single +5V power supply (except HIN201) and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. Applications include Computer, Portable, Mainframe, Laptop, Printers, Terminals, Instrumentation and Modems.

Parametrics

HIN202CPZ absolute maximum ratings: (1)VCC to Ground: (GND -0.3V) <VCC < 6V; (2)V+ to Ground: (VCC -0.3V) <V+ < 12V; (3)V- to Ground: -12V < V- < (GND +0.3V); (4)TIN: (V- -0.3V) < VIN < (V+ +0.3V); (5)RIN: ±30V; (6)Maximum Junction Temperature (Plastic Package):150℃; (7)Maximum Storage Temperature Range: -65 to 150℃; (8)Maximum Lead Temperature (Soldering 10s): 300℃.

Features

HIN202CPZ features: (1)Meets All RS-232E and V.28 Specifications; (2)Requires Only 0.1μF or Greater External Capacitors; (3)High Data Rate; (4)Requires Only Single +5V Power Supply; (5)Onboard Voltage Doubler/Inverter; (6)Low Power Consumption (Typ); (7)Low Power Shutdown Function (Typ); (8)Three-State TTL/CMOS Receiver Outputs.
