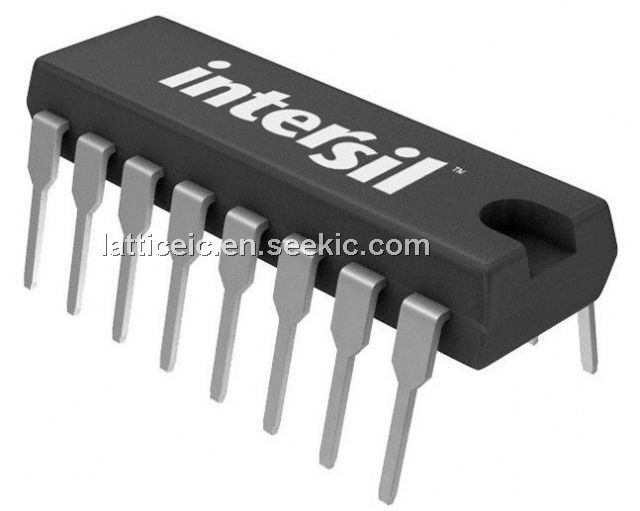

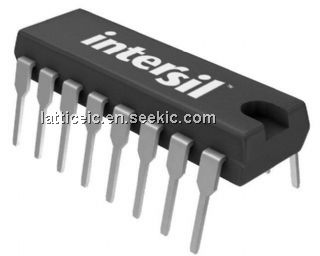

ICL232IPE

transmitter, Low Power Consumption, 5V, +0.3V, 3kΩ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.40 / Piece
51 ~ 500 :	0.30 / Piece
501 ~ 5000 :	0.20 / Piece

PartNumber:: ICL232IPE

Brand:: Intersil Corporation - Intersil | Pack: | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-06

From Other Seller

Part Number:ICL232IPE
US $0.20 - 0.40
Quantity:

piece

Product Summary

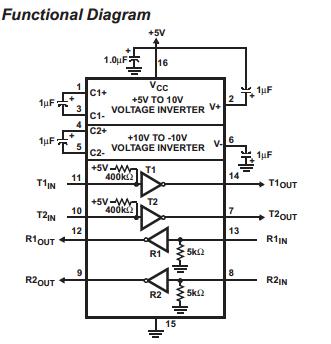

The ICL232IPE is a dual RS-232 transmitter/receiver interface circuit that meets all ElA RS-232C and V.28 specifications. It requires a single +5V power supply, and features two onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The drivers feature true TTL/CMOS input compatibility, slewrate-limited output, and 300Ω power-off source impedance. The receivers can handle up to +30V, and have a 3kΩ to 7kΩ input impedance. The receivers also have hysteresis to improve noise rejection. Applications include Any System Requiring RS-232 communications Ports and Dataloggers.

Parametrics

ICL232IPE absolute maximum ratings: (1)VCC to Ground:(GND -0.3V) < VCC < 6V; (2)V+ to Ground: (VCC -0.3V) < V+ < 12V; (3)V- to Ground: -12V < V- < (GND +0.3V); (4)T1IN, T2IN: (V- -0.3V) < VIN < (V+ +0.3V); (5)R1IN, R2IN: ±30V; (6)Maximum Storage Temperature Range: -65 to 150℃; (7)Maximum Lead Temperature (Soldering 10s): 300℃.

Features

ICL232IPE features: (1)Meets All RS-232C and V.28 Specifications; (2)Requires Only Single +5V Power Supply; (3)Onboard Voltage Doubler/Inverter; (4)Low Power Consumption; (5)2 Drivers; (6)All Critical Parameters are Guaranteed Over the Entire Commercial, Industrial and Military Temperature Ranges.
