Product Summary
The ISL81483IP is a high speed or slew rate limited, RS-485/RS-422 transceiver. The ISL81483IP presents a 1/8 unit load to the RS-485 bus, which allows up to 256 transceivers on the network for large node count systems (e.g., process automation, remote meter reading systems). Data for all meters is then read out from the concentrator via a single access port, or a wireless link. Applications include High Node Count Networks, Automated Utility Meter Reading Systems, Factory Automation, Security Networks, Building Environmental Control Systems and Industrial/Process Control Networks.
Parametrics
ISL81483IP absolute maximum ratings: (1)VCC to Ground: 7V; (2)Input Voltages DI, DE, RE: -0.5V to (VCC +0.5V); (3)Input/Output Voltages A/Y, B/Z: -8V to +12.5V; (4)Input/Output Voltages RO: -0.5V to (VCC +0.5V); (5)ESD Rating: >7kV.
Features
ISL81483IP features: (1)Fractional Unit Load Allows up to 256 Devices on the Bus; (2)Specified for 10% Tolerance Supplies; (3)Class 3 ESD Protection (HBM) on all Pins; (4)-7V to +12V Common Mode Input Voltage Range; (5)Three State Rx and Tx Outputs; (6)Half Duplex Pinouts; (7)Operate from a Single +5V Supply (10% Tolerance); (8)Current Limiting and Thermal Shutdown for driver Overload Protection.

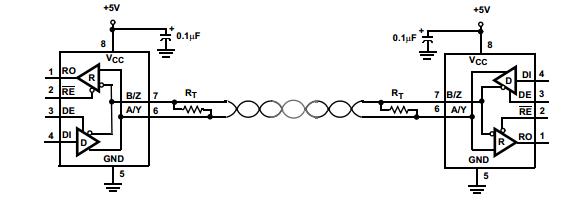

Diagrams
