Product Summary

The ISL83483IB is a 3.3V, Low Power, High Speed or Slew Rate Limited, RS-485/RS-422 Transceiver. The ISL83483IB utilizes slew rate limited drivers which reduce EMI, and minimize reflections from improperly terminated transmission lines, or unterminated stubs in multidrop and multipoint applications. Applications include Factory Automation, Security Networks, Building Environmental Control Systems and Industrial/Process Control Networks.

Parametrics

ISL83483IB absolute maximum ratings: (1)VCC to Ground: 7V; (2)Input Voltages DI, DE, RE: -0.5V to +7V; (3)Input/Output Voltages A, B, Y, Z: -8V to +12.5V; (4)Input/Output Voltages RO: -0.5V to (VCC +0.5V); (5)Maximum Junction Temperature (Plastic Package): 150℃; (6)Maximum Storage Temperature Range: -65 to 150℃; (7)Maximum Lead Temperature (Soldering 10s): 300℃.

Features

ISL83483IB features: (1)Operate from a Single +3.3V Supply (10% Tolerance); (2)Interoperable with 5V Logic; (3)High Data Rates; (4)Single Unit Load Allows up to 32 Devices on the Bus; (5)Slew Rate Limited Versions for Error Free Data; (6)Low Current Shutdown Mode; (7)-7V to +12V Common Mode Input Voltage Range; (8)Full Duplex and Half Duplex Pinouts; (9)Current Limiting and Thermal Shutdown for driver Overload Protection.

Diagrams

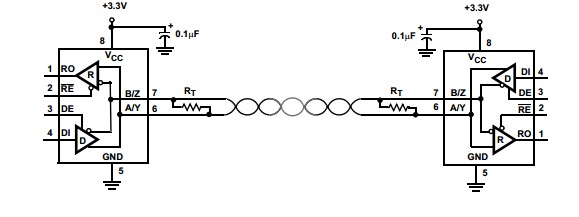

ISL83483IB Typical Operating Circuits
