Product Summary

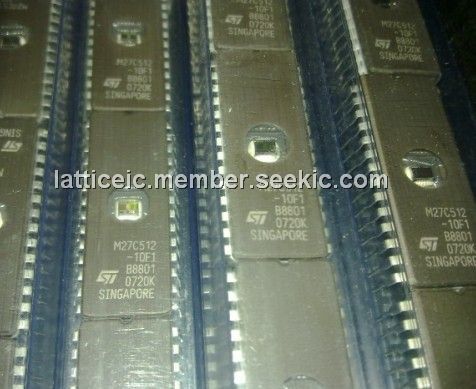

The M27C512-10F1 is a 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits.
Parametrics
M27C512-10F1 absolute maximum ratings: (1)Ambient Operating Temperature: -40 to 125 ℃; (2)Temperature Under Bias: -50 to 125 ℃; (3)Storage Temperature: -65 to 150 ℃; (4)Input or Output Voltages (except A9): -2 to 7 V; (5)Supply Voltage: -2 to 7 V; (6)A9 Voltage: -2 to 13.5 V; (7)Program Supply Voltage: -2 to 14 V.
Features
M27C512-10F1 features: (1)5V ± 10% Supply voltage in read operation; (2)access time: 45ns; (3)low power “CMOS” consumption: Active Current 30mA, standby current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)programming times of AROUND 6sec.; (6)electronic signature: Manufacturer Code: 20h, Device Code: 3Dh; (7)packages: Lead-Free Versions.

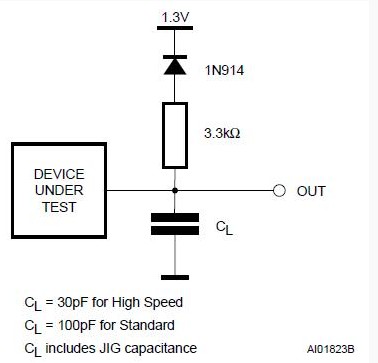

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C512-10F1 |
STMicroelectronics |
EPROM 512K (64Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
