Product Summary

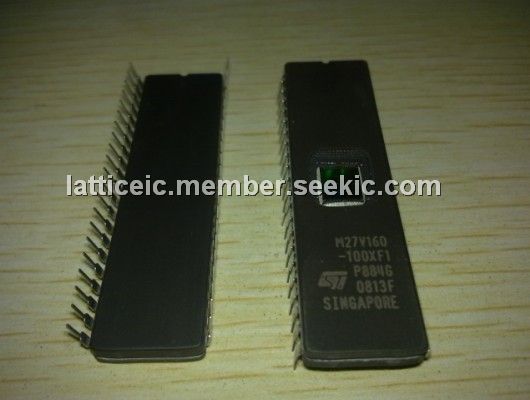

The M27V160-100XF1 is a low voltage 16 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). The M27V160-100XF1 is ideally suited for microprocessor systems requiring large data or program storage. The M27V160-100XF1 is organised as either 2 Mbit words of 8 bit or 1Mbit words of 16 bit. The pin-out is compatible with a 16 Mbit Mask ROM. The M27V160-100XF1 operates in the read mode with a supply voltage as low as 3V. The decrease in operating power allows either a reduction of the size of the battery or an increase in the time between battery recharges.
Parametrics
M27V160-100XF1 absolute maximum ratings: (1)TA Ambient Operating Temperature: –40 to 125 ℃; (2)TBIAS Temperature Under Bias: –50 to 125 ℃; (3)TSTG Storage Temperature: –65 to 150 ℃; (4)VIO Input or Output Voltage (except A9): –2 to 7 V; (5)VCC Supply Voltage: –2 to 7 V; (6)VA9 A9 Voltage: –2 to 13.5 V; (7)VPP Program Supply Voltage: –2 to 14 V.
Features
M27V160-100XF1 features: (1)3V to 3.6V Low Voltage in Read Operation; (2)Access Time: 100 ns; (3)Byte-wide or Word-wide Configurable; (4)16 Mbit Mask ROM Replacement; (5)Programming Voltage: 12.5V ± 0.25V; (6)Programming Time: 50 μs/word.

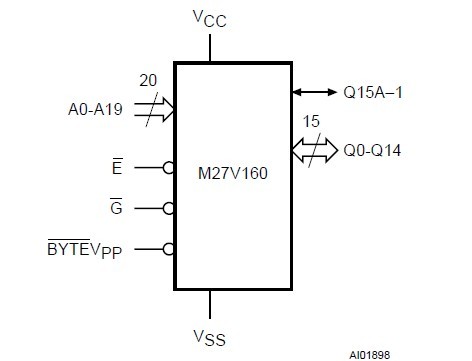

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27V160-100XF1 |
STMicroelectronics |
EPROM 2Mx8 or 1Mx16 100ns |
Data Sheet |
Negotiable |
|
||||
