MAX232IDR

dual driver, low Supply Current, 8 mA, 5V, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.40 / Piece
51 ~ 500 :	0.30 / Piece
501 ~ 5000 :	0.20 / Piece

PartNumber:: MAX232IDR

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-11

From Other Seller

Part Number:MAX232IDR
US $0.20 - 0.40
Quantity:

piece

Product Summary

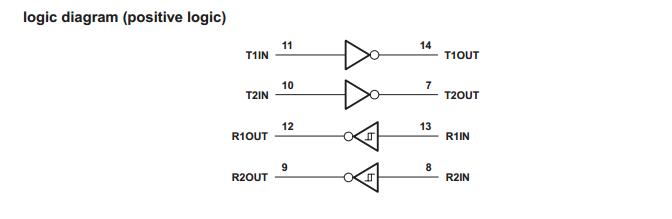

The MAX232IDR is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels. Applications include TIA/EIA-232-F, Battery-Powered Systems, Terminals, Modems and Computers.

Parametrics

MAX232IDR absolute maximum ratings: (1)Input supply voltage range, VCC (see Note 1): -0.3 V to 6 V; (2)Positive output supply voltage range: VCC-0.3 V to 15 V; (3)Negative output supply voltage range: -0.3 V to -15 V; (4)Operating virtual junction temperature: 150℃; (5)Storage temperature range: -65 to 150℃.

Features

MAX232IDR features: (1)Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28; (2)Operates From a Single 5-V Power Supply With 1.0-μF Charge-Pump Capacitors; (3)Operates Up To 120 kbit/s; (4)Two Drivers and Two Receivers; (5)±30-V Input Levels; (6)low Supply Current: 8 mA Typical; (7)ESD Protection Exceeds JESD 22-2000-V Human-Body Model (A114-A).
