Product Summary
The MAX3232CDR is a multichannel RS-232 line driver. It consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate. Applications include Battery-Powered Systems, PDAs, Notebooks, Laptops, Palmtop PCs, and Hand-Held Equipment.
Parametrics
MAX3232CDR absolute maximum ratings: (1)Supply voltage range, VCC (see Note 1): -0.3 V to 6 V; (2)Positive output supply voltage range, V+ (see Note 1): -0.3 V to 7 V; (3)Negative output supply voltage range, V- (see Note 1): 0.3 V to -7 V; (4)Supply voltage difference, V+ - V- (see Note 1): 13 V; (5)Operating virtual junction temperature: 150℃; (6)Storage temperature range: -65 to 150℃.
Features
MAX3232CDR features: (1)RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM); (2)Operates With 3-V to 5.5-V VCC Supply; (3)Operates Up To 250 kbit/s; (4)Two Drivers and Two Receivers; (5)Low Supply Current: 300 μA Typical; (6)External Capacitors: 4 × 0.1 μF; (7)Accepts 5-V Logic Input With 3.3-V Supply.

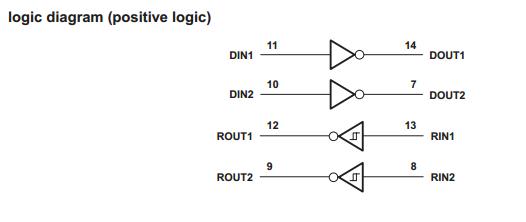

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3232CDR |
Texas Instruments |
Buffers & Line Drivers 3-5.5V Mult-Ch RS232 |
Data Sheet |
|
|
||||||||||||
|
MAX3232CDRE4 |
Texas Instruments |
Buffers & Line Drivers 3-5.5V Multichannel Line Drvr/Rcvr |
Data Sheet |
|
|
||||||||||||
|
MAX3232CDRG4 |
Texas Instruments |
RS-232 Interface IC 3-5.5V Multich RS- 232 Line Drvr/Rcvr |
Data Sheet |
|
|
||||||||||||
