Product Summary

The MAX485CPA+ is a low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The driver slew rates of the MAX485CPA+ is not limited, allowing them to transmit up to 2.5Mbps. Applications include Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Networks

Parametrics

MAX485CPA+ absolute maximum ratings: (1)Supply Voltage: 12V; (2)Control Input Voltage (RE, DE): -0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4)Driver Output Voltage (A, B): -8V to +12.5V; (5)Receiver Input Voltage (A, B): -8V to +12.5V; (6)Receiver Output Voltage (RO): -0.5V to (VCC +0.5V); (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX485CPA+ features: (1)For Fault-Tolerant Applications; (2)For Space-Constrained Applications; (3)For Multiple Transceiver Applications; (4)For Fail-Safe Applications; (5)For Low-Voltage Applications.

Diagrams

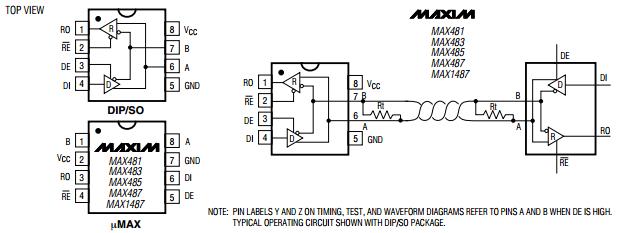

MAX485CPA+ Pin Configuration and Typical Operating Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

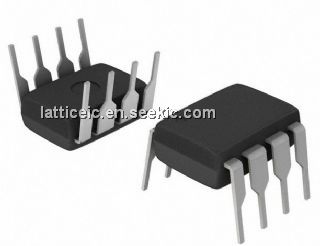

MAX485CPA+
MAX485CPA+

Maxim Integrated Products

RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver

Data Sheet

0-1: $1.91
1-25: $1.28
25-50: $0.93
50-100: $0.92
