Product Summary

The MAX7219CWG+ is a 12-bit, switchedcapacitor, successive-approximation, analog-todigital converter. Each device has three control inputs chip select (CS), the input-output clock (I/O CLOCK), and the address input (DATA INPUT) and is designed for communication with the serial port of a host processor or peripheral through a serial 3-state output. The device allows high-speed data transfers from the host.

Parametrics

MAX7219CWG+ absolute maximum ratings: (1)Supply voltage range, VCC (see Note 1):–0.5 V to 6.5 V ; (2)Input voltage range, VI (any input): –0.3 V to VCC + 0.3 V; (3)Output voltage range, VO:–0.3 V to VCC + 0.3 V; (4)Positive reference voltage: VCC + 0.1 V; (5)Negative reference voltage: -0.1 V; (6)Peak input current: ±20 mA; (7)Peak total input current: ±30 mA; (8)Storage temperature range: –65 to 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: 260℃.

Features

MAX7219CWG+ features: (1)12-Bit-Resolution A/D Converter; (2)10-μs Conversion Time Over Operating Temperature; (3)11 Analog Input Channels; (4)3 Built-In Self-Test Modes; (5)Inherent Sample-and-Hold Function; (6)Linearity Error: ±1 LSB Max; (7)On-Chip System Clock; (8)End-of-Conversion Output; (9)Unipolar or Bipolar Output Operation (Signed Binary With Respect to 1/2 the Applied Voltage Reference); (10)Programmable MSB or LSB First; (11)Programmable Power Down; (12)Programmable Output Data Length; (13)CMOS Technology.

Diagrams

MAX7219CWG+ functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

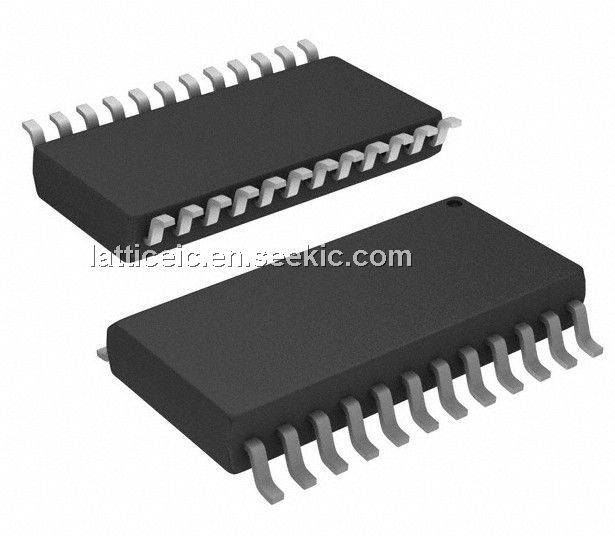

MAX7219CWG+
MAX7219CWG+
Maxim Integrated Products
LED Display Drivers 8-Digit LED Display Driver
Data Sheet
0-1: $7.57
1-25: $5.04
25-50: $3.19
50-100: $3.14
MAX7219CWG+T
MAX7219CWG+T
Maxim Integrated Products
LED Display Drivers 8-Digit LED Display Driver
Data Sheet
0-1: $7.41
1-25: $4.56
25-50: $3.23
50-250: $3.19
