Product Summary
The MAX813LESA is microprocessor (μP) supervisory circuit which reduces the complexity and number of components required to monitor power-supply and battery functions in µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. Applications include Computers, Controllers, Intelligent Instruments, Automotive Systems and Critical μP Power Monitoring.
Parametrics
MAX813LESA absolute maximum ratings: (1)VCC: -0.3V to 6.0V; (2)All Other Inputs (Note 1): -0.3V to (VCC + 0.3V); (3)Output Current (all outputs): 20mA; (4)Storage Temperature Range: -65℃ to +160℃; (5)Lead Temperature (soldering, 10sec): +300℃; (6)Operating Temperature Ranges: -40℃ to +85℃.
Features
MAX813LESA features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)Precision Supply-Voltage Monitor 4.65V; (4)200ms Reset Pulse Width; (5)Debounced TTL/CMOS-Compatible Manual-Reset Input; (6)Active-High Reset Output; (7)Voltage Monitor for Power-Fail or Low-Battery Warning.

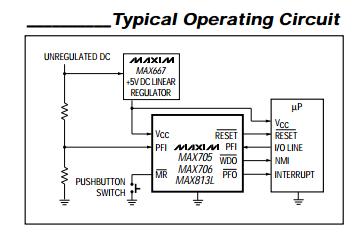

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX813LESA |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX813LESA+ |
Maxim Integrated Products |
Supervisory Circuits uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX813LESA+T |
Maxim Integrated Products |
Supervisory Circuits uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX813LESA-T |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
