Product Summary

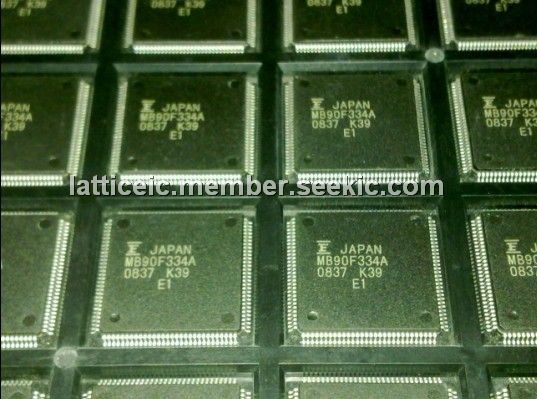

The MB90F334APMC-GE1 16-bit microcontroller is designed for applications, such as personal computer peripheral devices, that require USB communications. The MB90F334APMC-GE1 is equipped with functions that are suitable for personal computer peripheral devices such as displays and audio devices, and control of mobile devices that support USB communications.
Parametrics
MB90F334APMC-GE1 absolute maximum ratings: (1)Maximum clamp current ICLAMP: -2.0 to +2.0 mA; (2)Total maximum clamp current Σ|ICLAMP|: 20 mA; (3)Power consumption Pd: 340 mW; (4)Operating temperature TA: -40 to + 85 ℃; (5)Storage temperature Tstg: -55 to + 150 ℃.
Features
MB90F334APMC-GE1 features: (1)Built-in oscillation circuit and PLL clock frequency multiplication circuit; (2)Oscillation clock; (3)The main clock is the oscillation clock divided into 2 (for oscillation 6 MHz : 3 MHz); (4)Clock for USB is 48 MHz; (5)Machine clock frequency of 6 MHz, 12 MHz, or 24 MHz selectable.
Diagrams
![]() |
