Product Summary
The MC908AZ32ACFU is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.
Parametrics
MC908AZ32ACFU absolute maximum ratings: (1)Supply Voltage: –0.3 to +6.0 V; (2)Input Voltage: VSS–0.3 to VDD +0.3 V; (3)Maximum Current Per Pin Excluding VDD and VSS: ± 25 mA; (4)Storage Temperature:–55 to +150℃; (5)Maximum Current out of VSS: 100 mA; (6)Maximum Current into VDD: 100 mA; (7)Reset and IRQ Input Voltage: VDD + 4.5 V.
Features
MC908AZ32ACFU features: (1)High-Performance M68HC08 Architecture; (2)Fully Upward-Compatible Object Code with M6805, M146805, and M68HC05 Families; (3)8.4 MHz Internal Bus Frequency; (4)32,256 bytes of FLASH Electrically Erasable Read-Only Memory (FLASH); (5)FLASH Data Security; (6)512 bytes of On-Chip Electrically Erasable Programmable Read-Only Memory with Security Option (EEPROM); (7)1K byte of On-Chip RAM; (8)Clock Generator Module (CGM); (9)Serial Peripheral Interface Module (SPI); (10)Serial Communications Interface Module (SCI); (11)8-Bit, 15-Channel Analog-to-Digital Converter (ADC-15); (12)16-Bit, 6-Channel Timer Interface Module (TIMA-6); (13)16-Bit, 2-Channel Timer Interface Module (TIMB); (14)Programmable Interrupt Timer (PIT).

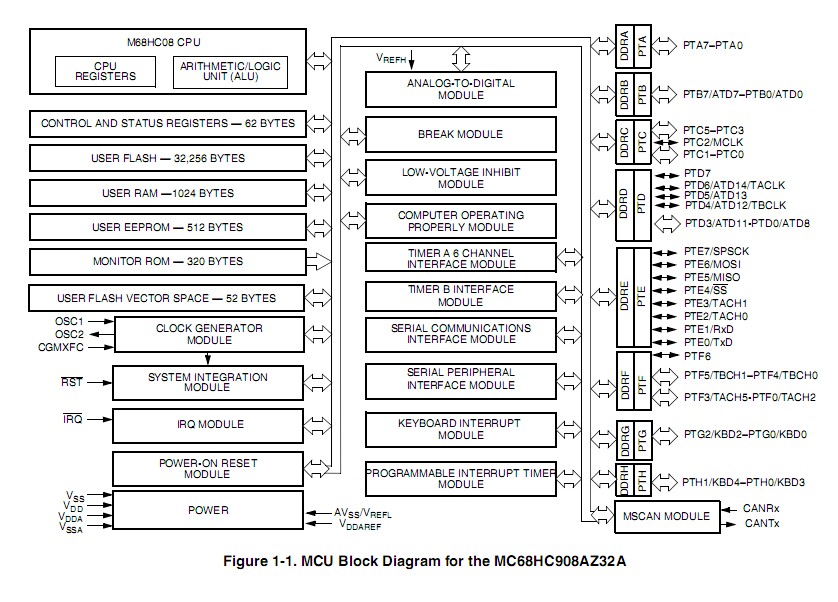

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC908AZ32ACFU |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 8BIT FLASH EEPROM/CAN |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC908AZ32ACFUE |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 8BIT FLASH EEPROM/CAN |
Data Sheet |
|
|
||||||||||||
|
MC908AZ32ACFUER |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 8BIT FLASH EEPROM/ CAN |
Data Sheet |
|
|
||||||||||||
