Product Summary

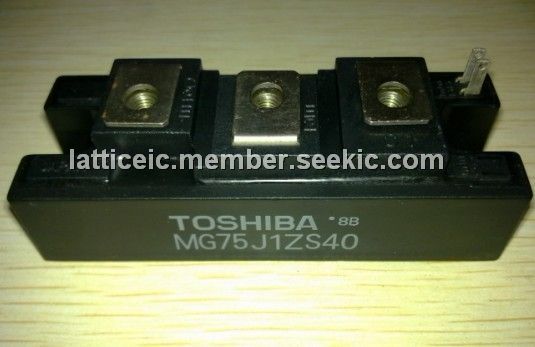

The MG75J1ZS40 is a silicon n channel IGBT.

Parametrics

MG75J1ZS40 absolute maximum ratings: (1)Collector Emitter volatge: 600V; (2)Gate Emitter Voltage: 20V; (3)Collector current: 75A; (4)Forward current: 75A; (5)Collector power dissipation: 350W; (6)Junction temperature: 150℃; (7)Storage temperature range: -40 to 125℃; (8)Isolation voltage: 2500V.

Features

MG75J1ZS40 features: (1)High input impedance; (2)High speed: 0.35μs; (3)Low saturation volatge: 3.5V; (4)Enhancement mode; (5)The Electrodes are Isolated from case.

Diagrams

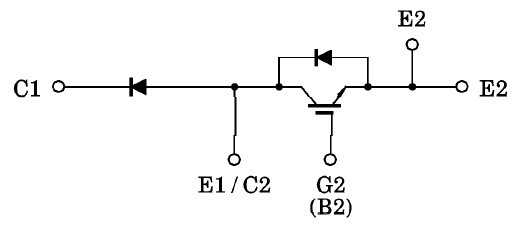

MG75J1ZS40 circuit diagram
