Product Summary

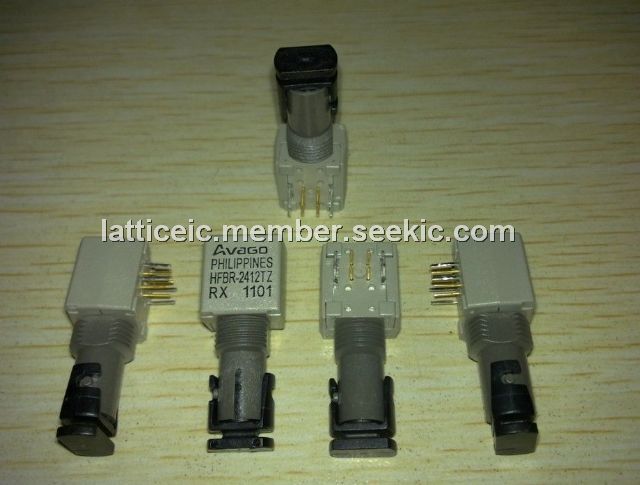

The HFBR-2412TZ is a Low Cost, Miniature Fiber Optic Component with ST, SMA, SC and FC Ports. The HFBR-2412TZ is designed to provide cost effective, high performance fiber optic communication links for information systems and industrial applications with link distances of up to 2.7 kilometers. The applications of the HFBR-2412TZ are 100Base-SX Fast Ethernet on 850nm, Media/fiber conversion, switches, routers, hubs and NICs on 100Base-SX, Local Area Networks, Computer to Peripheral Links, Computer Monitor Links, Digital Cross Connect Links, Central Office Switch/PBX Links, Video Links, Modems and Multiplexers, Suitable for Tempest Systems, Industrial Control Links.
Parametrics
HFBR-2412TZ absolute maximum ratings: (1)Storage Temperature:-55℃ to +85℃; (2)Operating Temperature:-40℃ to +85℃; (3)Lead Soldering Cycle: Temp:+260℃, Time:10sec; (4)Supply Voltage:-0.5V to 7.0V; (5)Output Current:25mA; (6)Output Voltage:-0.5V to 18.0V; (7)Output Collector Power Dissipation:40mW; (8)Fan Out (TTL):5.
Features
HFBR-2412TZ features: (1)Meets IEEE 802.3 Ethernet and 802.5 Token Ring Standards; (2)Meets TIA/EIA-785 100Base-SX standard; (3)Low Cost Transmitters and Receivers; (4)Choice of ST, SMA, SC or FC Ports; (5)820 nm Wavelength Technology; (6)Signal Rates up to 160 MBd; (7)Link Distances up to 2.7 km; (8)Specified with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200μm HCS Fiber; (9)Repeatable ST Connections within 0.2 dB Typical; (10)Unique Optical Port Design for Efficient Coupling; (11)Auto-Insertable and Wave Solderable; (12)No Board Mounting Hardware Required; (13)Wide Operating Temperature Range -40℃ to +85℃; (14)AlGaAs Emitters 100% Burn-In Ensures High Reliability; (15)Conductive Port Option.

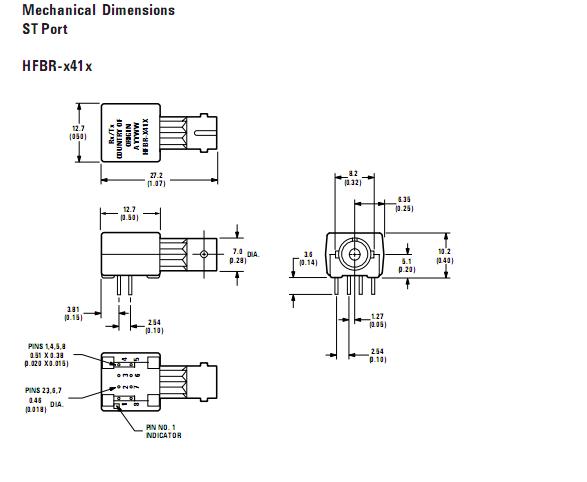

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFBR-2412TZ |
Avago Technologies |
Fiber Optic Transmitters, Receivers, Transceivers LOW COST 5MBD STT FO RX-Pb Free |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
HFBR-0310 |
Avago Technologies |
Fiber Optic Development Tools 155 MBd Txcvr Evaluation Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-0310Z |
Avago Technologies |
Fiber Optic Development Tools 125MBd 1300nm Evaluation Kit |
Data Sheet |
|
|
||||||||||||
|
HFBR-0319 |
Avago Technologies |
Fiber Optic Development Tools 1X9 Fiber Optic Evaluation Kit |
Data Sheet |
|
|
||||||||||||
|
HFBR-0400 |
Avago Technologies |
Fiber Optic Development Tools SMA Fiber Optic Evaluation Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-0410 |
Avago Technologies |
Fiber Optic Development Tools ST Fiber Optic Evaluation Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-0410Z |
Avago Technologies |
Fiber Optic Development Tools DC-5MBd 820nm Evaluation Kit |
Data Sheet |
|
|
||||||||||||
