Product Summary
The PC354NTJ000F is a device specification for photocoupler.
Parametrics
PC354NTJ000F absolute maximum ratings: (1)Forward current: 50mA; (2)Peak forward current: 1A; (3)Reverse voltage: 6V; (4)Power dissipation: 70mW; (5)Emitter-collector voltage: 6V; (6)Collector current: 50mA; (7)Collector power dissipation: 150mW; (8)Total power dissipation: 170mW; (9)Operating temperature: -30 to 100℃; (10)Storage temperature: -40 to 125℃.
Features
PC354NTJ000F features: (1)Forward voltage: 1.2V; (2)Terminal capacitance: 30pF; (3)Dark current: 100nA; (4)Collector current: 0.2 to 4.0mA; (5)Collector-emitter saturation voltage: 0.1V; (6)Floating capacitance: 0.6pF.

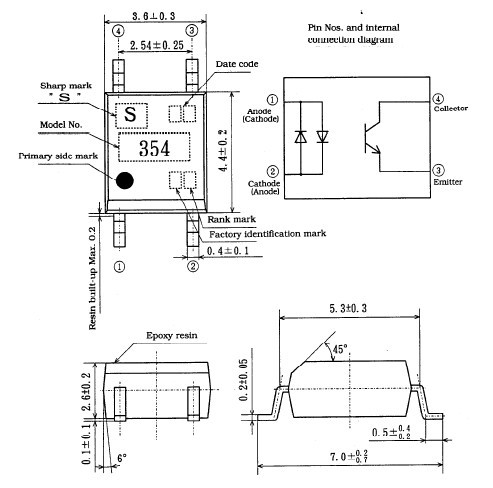

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC354NTJ000F |
Sharp Microelectronics |
Transistor Output Optocouplers Photocoupler AC Input |
Data Sheet |
|
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
PC353T |
|
PHOTOCOUPLER TRAN W/BASE 5-SMD |
Data Sheet |
Negotiable |
|
||||||||
 |
PC354 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
PC354M1J000F |
Sharp Microelectronics |
Transistor Output Optocouplers Hi Temp Tested PC354N1J000F |
Data Sheet |
|
|
||||||||
|
PC354M1TJ00F |
Sharp Microelectronics |
Transistor Output Optocouplers Hi Temp Tested PC354N1TJ00F |
Data Sheet |
|
|
||||||||
|
PC354MJ0000F |
Sharp Microelectronics |
Transistor Output Optocouplers Hi Temp Tested PC354NJ0000F |
Data Sheet |
|
|
||||||||
|
PC354MTJ000F |
Sharp Microelectronics |
Transistor Output Optocouplers Hi Temp Tested PC354NTJ000F |
Data Sheet |
|
|
||||||||
