Product Summary

The Power Thyristor/Diode Module PK25GB80 is designed for various rectifier circuits and power controls. For your circuit application, following internal connections and wide voltage ratings up to 800V are available. The applications of the PK25GB80 are: Various rectifiers, AC/DC motor drives, Heater controls, Light dimmers, Static switches.

Parametrics

PK25GB80 absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 800 V; (2)Non-Repetitive Peak Reverse Voltage: 960 V; (3)Repetitive Peak Off-State Voltage: 800 V; (4)VISO Isolation Breakdown Voltage (R.M.S.): 2500V; (5)Tj Operating Junction Temperature: -40 to 125℃; (6)Tstg Storage Temperature: -40 to 125℃.

Features

PK25GB80 features: (1)IT(AV): 25A, IT(RMS) 39A, ITSM 500A; (2)di/dt: 100 A/μs; (3)dv/dt 500V/μs.

Diagrams

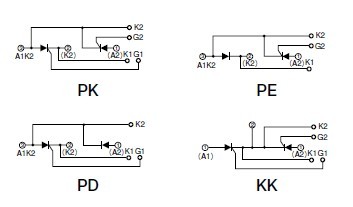

PK25GB80 Internal Configurations

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PK25GB80
PK25GB80

Other


Data Sheet

Negotiable
