Product Summary
The PM200DSA120 is an Intelligent Power Module isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM200DSA120 include Inverters, UPS, Motion/Servo Control and Power Supplies.
Parametrics
PM200DSA120 absolute maixmum ratings: (1)Power Device Junction Temperature Tj: -20 to 150℃; (2)Storage Temperature Tstg: -40 to 125℃; (3)Case Operating Temperature TC: -20 to 100℃; (4)Mounting Torque, M6 Mounting Screws: 26 in-lb; (5)Mounting Torque, M6 Main Terminal Screws: 26 in-lb; (6)Module Weight (Typical): 630 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part) VCC(prot.): 800 Volts; (8)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal VRMS: 2500 Volts.
Features
PM200DSA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Current, Over Temperature, Under Voltage.

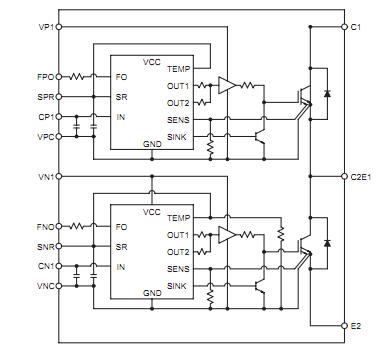

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM200DSA120 |
|
MOD IPM DUAL 1200V 200A |
Data Sheet |
Negotiable |
|
||||
