Product Summary
The SN75LBC184DR is a differential data line transceiver in the trade-standard footprint of the SN75176 with built-in protection against high-energy noise transients. The SN75LBC184DR features provides a substantial increase in reliability for better immunity to noise transients coupled to the data cable over most existing devices. Use of these circuits provides a reliable low-cost direct-coupled (with no isolation transformer) data line interface without requiring any external components. Applications include Industrial Networks, Utility Meters and Motor Control.
Parametrics
SN75LBC184DR absolute maximum ratings: (1)Supply voltage, VCC (see Note 1): -0.5 V to 7 V; (2)Continuous voltage range at any bus terminal: -15 V to 15 V; (3)Data input/output voltage: -0.3 V to 7 V; (4)Receiver output current: 20 mA.
Features
SN75LBC184DR features: (1)Integrated Transient Voltage Suppression; (2)ESD Protection for Bus Terminals; (3)Circuit Damage Protection of 400-W Peak (Typical) Per IEC 61000-4-5; (4)Controlled Driver Output-Voltage Slew Rates Allow Longer Cable Stub Lengths; (5)250-kbps in Electrically Noisy Environments; (6)Open-Circuit Fail-Safe Receiver Design; (7)1/4 Unit Load Allows for 128 Devices Connected on Bus; (8)Thermal Shutdown Protection; (9)Power-Up/-Down Glitch Protection; (10)Low Disabled Supply Current 300 μA Max.

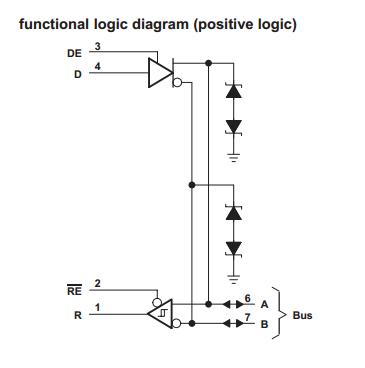

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN75LBC184DR |
Texas Instruments |
Buffers & Line Drivers Trans Volt Spprssn Diff Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN75LBC184DRG4 |
Texas Instruments |
Buffers & Line Drivers Trans Volt Spprssn Diff Transceiver |
Data Sheet |
|
|
||||||||||||
