Product Summary
The ST202CDR is a 2 driver, 2 receiver device following EIA/TIA-232 and V.28 communication standard. It is particularly suitable for applications where ± 12V is not available. The ST202CDR uses a single 5V power supply and only four external capacitors (0.1μF). Typical application are in: Portable Computers, Low Power Modems, Interfaces Translation and Battery Powered RS-232 Networks.
Parametrics
ST202CDR absolute maximum ratings: (1)Supply voltage:: -0.3 to 6 V; (2)Extra positive voltage: (VCC -0.3) to 13.2 V; (3)Extra negative voltage: 0.3 to -13.2 V; (4)Transmitter input voltage range: -0.3 to (VCC + 0.3) V; (5)Receiver input voltage range: ± 30 V; (6)Transmitter output voltage range: ± 15 V; (7)Receiver output voltage range: -0.3 to (VCC + 0.3) V.
Features
ST202CDR features: (1)Supply voltage range: 4.5 to 5.5V; (2)Supply current no load (Typ): 1.5mA; (3)Transmitter output voltage swing (Typ): ± 9V; (4)Transition slew rate (Typ.): 12V/ms; (5)Receiver propagation delay (Typ.): 0.1ms; (6)Compatible with MAX202; (7)Receiver input voltage range: ± 30V; (8)Data rate (Typ.): 400kbp/s; (9)Operating temperature range: -40 To 85℃, 0 to 70℃.

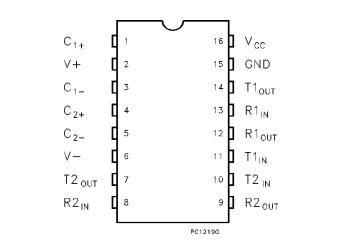

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ST202CDR |
STMicroelectronics |
Buffers & Line Drivers 5V 2Driver/2Receiver |
Data Sheet |
|
|
|||||||||||||||||
