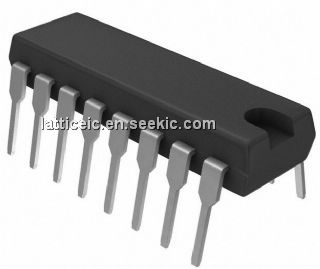

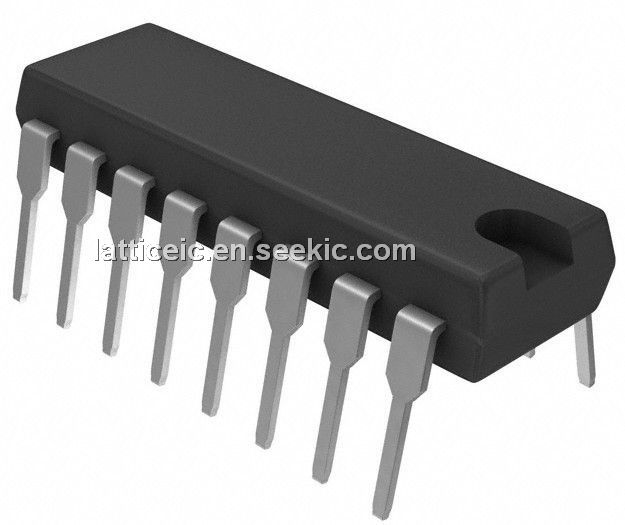

ST202ECN

transceiver, ESD protection, ± 15 KV, 120 kbps, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.60 / Piece
51 ~ 500 :	0.45 / Piece
501 ~ 5000 :	0.30 / Piece

PartNumber:: ST202ECN

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-10

From Other Seller

Part Number:ST202ECN
US $0.30 - 0.60
Quantity:

piece

Product Summary

The ST202ECN is a 2 driver 2 receiver device designed for RS-232 and V.28 communications in harsh enviroments. Each transmitter output and receiver input is protected against ± 15KV electrostatic discharge (ESD) shocks. The drivers meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120Kbps, when loaded in accordance with the EIA/TIA-232Especification. The ST202ECN uses a single 5V supply voltage.

Parametrics

ST202ECN absolute maximum ratings: (1)Supply Voltage: -0.3 to 6 V; (2)Extra Positive Voltage: (VCC - 0.3) to 14 V; (3)Extra Negative Voltage: -14 to 0.3 V; (4)Transmitter Input Voltage Range: -0.3 to (V+ + 0.3) V; (5)Receiver Input Voltage Range: ±30 V; (6)Transmitter Output Voltage Range: (V- - 0.3) to (V+ + 0.3) V; (7)Receiver Output Voltage Range: -0.3 to (VCC + 0.3) V.

Features

ST202ECN features: (1)ESD protection FOR RS-232 I/O pins:± 15 KV human body model; (2)guaranteed 120 kbps date rate; (3)guarateed slew rate range 3 to 30V/μs; (4)operate from a single 5V power supply.
