Product Summary

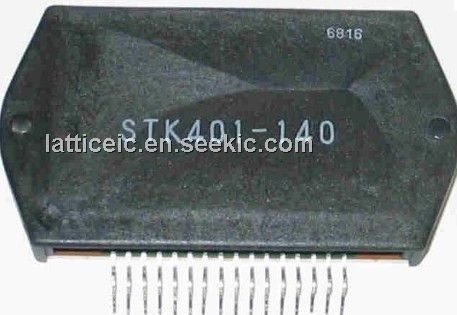

The STK401-140 is a two-channel AF power amplifier. It allows users to construct a product line of amplifiers with differing power output capacities using the same PCB design y simply changing the hybrid IC used. The STK401-140 supports 3 and 6Ω drive to handle the recent trend toward lower impedance speakers.
Parametrics
STK401-140 absolute maximum ratings: (1)maximum supply voltage: ±74V; (2)thermal resistance: 1 ℃/W; (3)junction temperature: 150℃; (4)operating substrate temperature: 125℃; (5)storage temperature range: -30 to +125℃.
Features
STK401-140 features: (1)pin compatibility; (2)support for output load impedance of 3 or 6Ω; (3)new pin assignment; (4)minimal number of required external components.

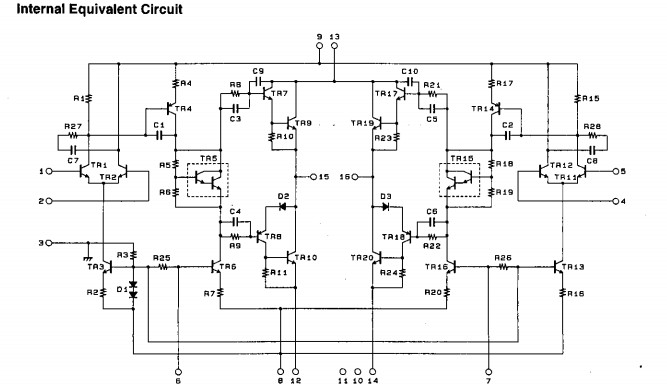

Diagrams
