Product Summary
The 2SC1623 is an audio frequency general purpose amplifier NPN silicon epitaxial transistor mini mold.
Parametrics
2SC1623 absolute maximum ratings: (1)Collector to Base Voltage VCBO: 60 V; (2)Collector to Emitter Voltage VCEO: 50 V; (3)Emitter to Base Voltage VEBO: 5.0 V; (4)Collector Current (DC) IC: 100 mA; (5)Total Power Dissipation at 25 ℃ Ambient Temperature PT: 200 mW; (6)Junction Temperature Tj: 150 ℃; (7)Storage Temperature Range Tstg: –55 to +150 ℃.
Features
2SC1623 features: (1)High DC Current Gain: hFE = 200 TYP.(VCE = 6.0 V, IC = 1.0 mA); (2)High Voltage: VCEO = 50 V.

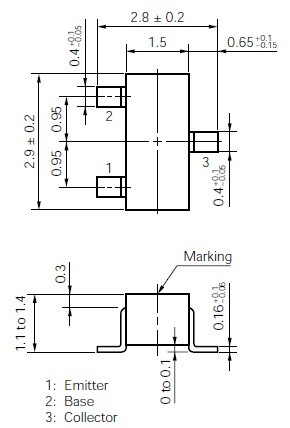

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC1623W |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC1623-T1B-A L5 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC1623-T1B L5 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC1623-T1B |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC1623RLT1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC1623QLT1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC1623-L7 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC1623-L6 |
Other |
|
Data Sheet |
Negotiable |
|
||||
