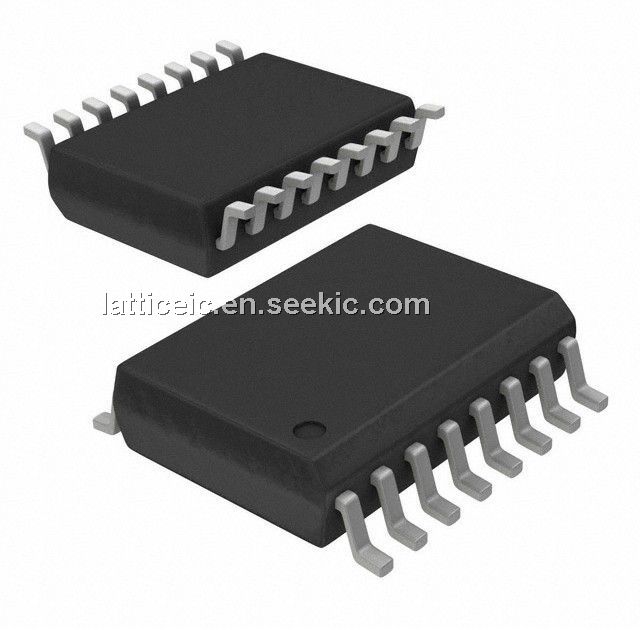

ADM232AARWZ

receiver, high speed, 200 kB/s, 5 V, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.30 / Piece
50 ~ 500 :	0.28 / Piece
500 ~ 50000 :	0.25 / Piece

PartNumber:: ADM232AARWZ

Brand:: Analog Devices - ADI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 500000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-19

From Other Seller

Part Number:ADM232AARWZ
US $0.25 - 0.30
Quantity:

piece

Product Summary

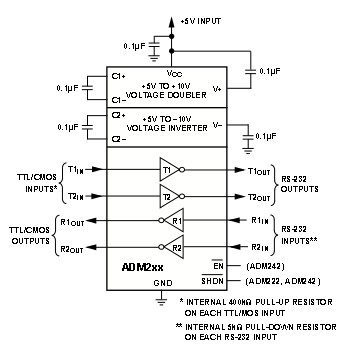

The ADM232AARW is a high speed RS-232 line driver/receiver offering transmission rates up to 200 kB/s. Operating from a single +5 V power supply, a highly efficient on-chip charge pump using small (0.1 μF) external capacitors allows RS-232 bipolar levels to be developed. Two RS-232 drivers and two RS-232 receivers are provided on each device. The ADM232AARW is a pin-compatible, high speed upgrade for the AD232 and for the ADM232L. It is available in 16-pin DIP and in both narrow and wide surface mount (SOIC) packages. Applications include Computers, Peripherals, Modems, Printers and Instruments.

Parametrics

ADM232AARW absolute maximum ratings: (1)Input Voltages-TIN: -0.3 V to (VCC + 0.3 V); (2)Input Voltages-RIN: ± 30 V; (3)Power Dissipation N-16: 400 mW; (4)Operating Temperature Range; (5)Industrial (A Version):–40 to +85℃; (6)Storage Temperature Range:–65 to +150℃; (7)Lead Temperature (Soldering, 10 sec): +300℃; (8)Vapor Phase (60 sec): +215℃; (9)Infrared (15 sec): +220℃.

Features

ADM232AARWZ features: (1)200 kB/s Transmission Rate; (2)Small (0.1 μF) Charge Pump Capacitors; (3)Single 5 V Power Supply; (4)Two Drivers and Two Receivers; (5)On-Board DC-DC Converters; (6)±9 V Output Swing with +5 V Supply; (7)±30 V Receiver Input Levels.
