Product Summary

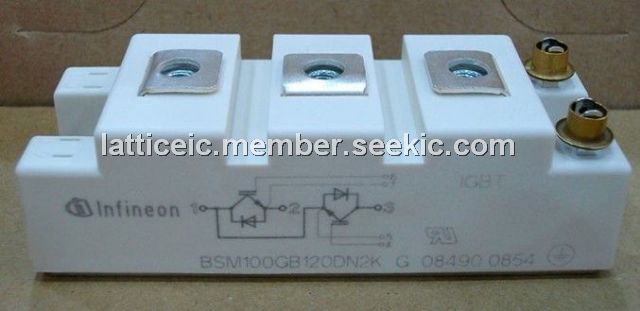

The BSM100GB120DN2K is an IGBT power module.

Parametrics

BSM100GB120DN2K absolute maximum ratings: (1)Collector-emitter voltage VCE: 1200 V; (2)Collector-gate voltage RGE = 20 kΩ VCGR: 1200 V; (3)Gate-emitter voltage VGE: ± 20 V; (4)DC collector current TC = 25℃ IC: 145 A; (5)DC collector current TC = 80℃ IC: 100 A; (6)Pulsed collector current, tp = 1 ms TC = 25℃: 290 A; (7)Pulsed collector current, tp = 1 ms TC = 80℃: 200 A; (8)Power dissipation per IGBT TC = 25℃ Ptot: 700 W; (9)Chip temperature Tj: + 150℃.

Features

BSM100GB120DN2K features: (1)Half-bridge; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

BSM100GB120DN2K package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM100GB120DN2K
BSM100GB120DN2K
Infineon Technologies
IGBT Modules 1200V 100A DUAL
Data Sheet
0-1: $66.47
1-5: $63.16
5-10: $59.86
