Product Summary

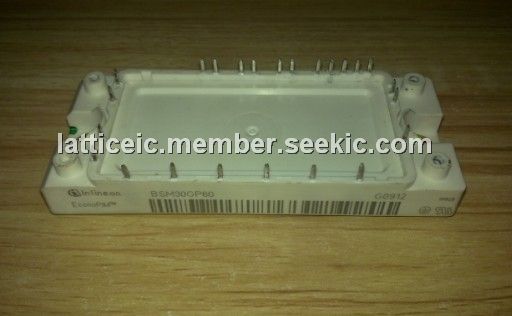

The BSM30GP60 is an IGBT module.
Parametrics
BSM30GP60 absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 1600 V; (2)RMS forward current per chip, IFRMSM: 40 A; (3)DC forward current, Id: 30 A; (4)surge forward current: 230 A.
Features
BSM30GP60 features: (1)collector-emitter voltage, VCES: 600 V; (2)DC-collector current, IC: 25 A; (3)repetitive peak collector current, ICRM: 30 A; (4)total power dissipation, Ptot: 100 W; (5)gate-emitter peak voltage, VGES: +/- 20V V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BSM30GP60 |
Infineon Technologies |
IGBT Modules 600V 30A PIM |
Data Sheet |
|
|
||||||||
 |
BSM30GP60_B2 |
Infineon Technologies |
IGBT Modules IGBT 1600V 30A |
Data Sheet |
|
|
||||||||
