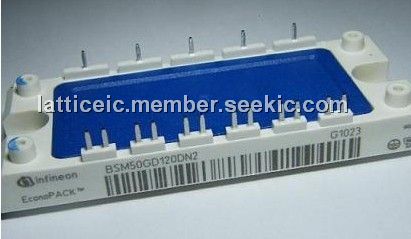

The BSM50GD120DN2 is an IGBT Power Module.
Parametrics
BSM50GD120DN2 absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Collector-gate voltage, RGE = 20 kΩ: 1200V; (3)Gate-emitter voltage: ±20V; (4)DC collector current: TC = 25 ℃: 72A, TC = 80 ℃: 50A; (5)Pulsed collector current, tp = 1 ms: TC = 25 ℃: 144A, TC = 80 ℃: 100A; (6)Power dissipation per IGBT, TC = 25℃: 350W; (7)Chip temperature: +150℃; (8)Storage temperature: -55℃ to +150℃.
Features
BSM50GD120DN2 features: (1)Solderable Power module; (2)3-phase full-bridge; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate.
