Product Summary

The 1N4448 is a high-speed switching diode fabricated in planar technology, and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages.

Parametrics

1N4148,133 absolute maixmum ratings: (1)Repetitive peak reverse voltage, VRRM: 100 V; (2)Reverse voltage VR: 75 V; (3)Peak forward surge current tp=1μs IFSM: 2 A; (4)Repetitive peak forward current IFRM: 500 mA; (5)Forward current IF: 300 mA; (6)Average forward current VR=0 IFAV: 150 mA; (7)Power dissipation l=4mm, TL=45℃ PV: 440 mW; l=4mm: 500 mW; (8)Junction temperature Tj: 200 ℃; (9)Storage temperature range Tstg: –65 to +200 ℃.

Features

1N4148,133 features: (1)Electrically equivalent diodes: 1N4148 – 1N914, 1N4448 – 1N914B.

Diagrams

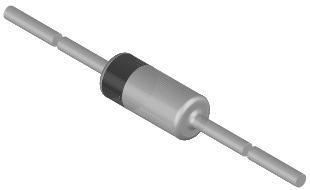

1N4148,133 Dimensions
