Product Summary
The BXA10-48S05 is a Power DC/DC Converter. It is designed for a wide range of applications including communications, industrial systems and mobile battery powered systems. The BXA10-48S05 has wide input ranges of 9-18VDC and 18-75VDC, and is available in single and dual output versions.
Parametrics
BXA10-48S05 absolute maximum ratings: (1)Isolation voltage Input/output: 1500VDC; (2)Isolation voltage Input or output to case: 1000VDC; (3)Switching frequency Fixed: 400kHz; (4)Start up surge current Resistive load: 1.5A; (5)Thermal performance Operating ambient (See derating curve): -25℃ to +71℃; (6)Thermal performance Non-operating amb.: -55℃ to +125℃; (7)Thermal performance Case: +110℃.
Features
BXA10-48S05 features: (1)1 x 2 x 0.395 inch package with stand-offs; (2)13.3 Watts/in3 power density; (3)CISPR22 and EN55022 conducted emission level A; (4)UL, CSA and VDE approvals (48V input only); (5)Continuous short circuit protection; (6)Optional remote ON/OFF.

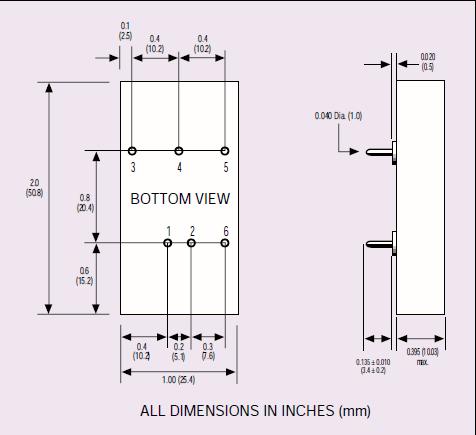

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BXA10-48S05 |
Emerson / Astec Power |
DC/DC Converters 10W 5V 2A |
Data Sheet |
Negotiable |
|
||||||||||||
|
BXA10-48S05J |
Emerson / Astec Power |
DC/DC Converters 10W 5V 2A |
Data Sheet |
|
|
||||||||||||
 |
BXA10-48S05-S |
|
CONV DC/DC SNGL 5VOUT 10W REMOTE |
Data Sheet |
Negotiable |
|
||||||||||||
