Product Summary

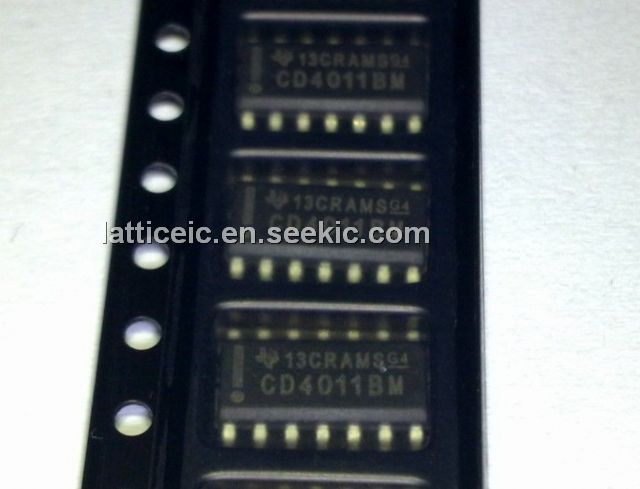

The CD4011BM is a Quad 2-Input NAND Buffered B Series Gate. It has equal source and sink current capabilities and conform to standard B series output drive. The CD4011BM also has buffered outputs which improve transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS.
Parametrics
CD4011BM absolute maximum ratings: (1)Voltage at any Pin:-0.5V to VDD +0.5V; (2)Power Dissipation (PD): Dual-In-Line:700mW, Small Outline:500mW; (3)VDD Range:-0.5VDC to +18VDC; (4)Storage Temperature (TS):-65℃ to +150℃; (5)Lead Temperature (TL)(Soldering, 10 seconds):260℃.
Features
CD4011BM features: (1)Low power TTL: Fan out of 2 driving 74L compatibility: or 1 driving 74LS; (2)5V–10V–15V parametric ratings; (3)Symmetrical output characteristics; (4)Maximum input leakage 1μA at 15V over full temperature range.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4011BM |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input |
Data Sheet |
|
|
||||||||||||
|
CD4011BM96 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-In. CMOS |
Data Sheet |
|
|
||||||||||||
|
CD4011BME4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input |
Data Sheet |
|
|
||||||||||||
|
CD4011BM96G4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-In. CMOS |
Data Sheet |
|
|
||||||||||||
|
CD4011BMG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input |
Data Sheet |
|
|
||||||||||||
|
CD4011BM96E4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-In. CMOS |
Data Sheet |
|
|
||||||||||||
|
CD4011BMT |
Texas Instruments |
Gates (AND / NAND / OR / NOR) CMOS Quad 2-Input NAND Gate |
Data Sheet |
|
|
||||||||||||
|
CD4011BMTE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) CMOS Quad 2-Input NAND Gate |
Data Sheet |
|
|
||||||||||||
