Product Summary

The CM1000HA-24H is an IGBT Module. It is designed for use in switching applications. The CM1000HA-24H consists of one IGBT in a single configuration with a reverse-onnected superfast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

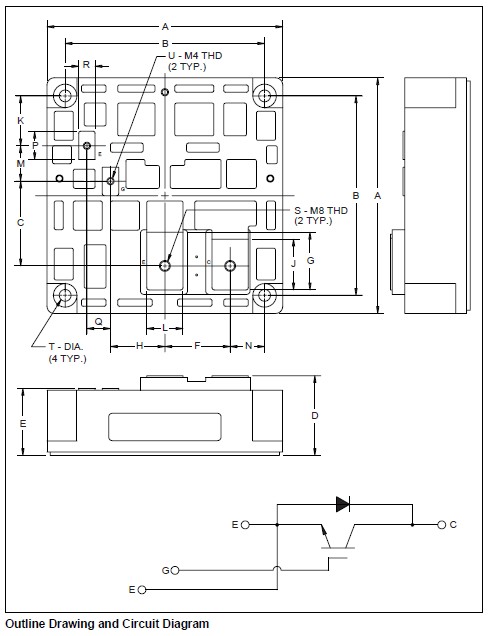

Parametrics

CM1000HA-24H absolute maximum ratings: (1)Junction Temperature, Tj: –40 to +150 ℃; (2)Storage Temperature, Tstg: –40 to +125 ℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (TC = 25℃), IC: 1000 Amperes; (6)Peak Collector Current (Tj ≤ 150℃), ICM: 2000 Amperes; (7)Emitter Current (TC = 25℃), IE: 1000 Amperes; (8)Peak Emitter Current, IEM: 2000 Amperes; (9)Maximum Collector Dissipation (TC = 25℃), Pc: 5800 Watts; (10)Mounting Torque, M8 Main Terminal: 8.83 ~ 10.8 N · m; (11)Mounting, Torque M6 Mounting: 1.96 ~ 2.94 N · m; (12)Mounting, Torque M4 Terminal: 0.98 ~ 1.47 N · m; (13)Weight: 1600 Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrma.

Features

CM1000HA-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
