Product Summary

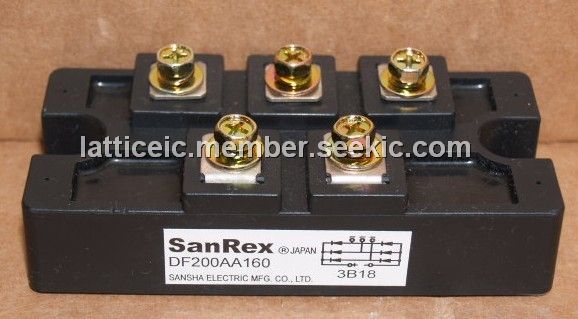

The DF200AA160 is a Power diode module. It is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The DF200AA160 is electrically isolated from elements for simple heatsink construction.
Parametrics
DF200AA160 absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 1600V; (2)VRSM Non-Repetitive Peak Reverse Voltage: 1700V; (3)IF (AV) Average Forward Current: 200A; (4)IFSM Surge Forward Current: 1850/2000A; (5)Operating Junction Temperature Tj: –40℃ to 150℃; (6)Storage Temperature Tstg: –40℃ to 125℃.
Features
DF200AA160 features: (1)TjMax..150; (2)Isolated mounting base; (3)High reliability by unique glass passivation (Applications) AC, DC Motor Drive/AVR/Switching-for three phase rectification.

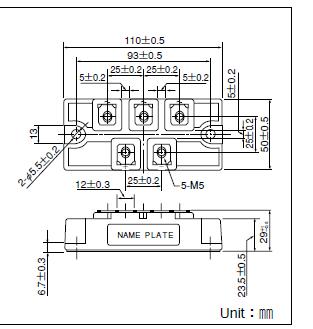

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DF200AA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
DF20 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
DF2005-G |
|
RECTIFIER BRIDGE 2.0A 50V DF |
Data Sheet |
|
|
||||||
|
DF2005S-G |
|
RECTIFIER BRIDGE 2.0A 50V DF |
Data Sheet |
|
|
||||||
|
DF2005ST-G |
|
RECTIFIER BRIDGE 2.0A 50V DF |
Data Sheet |
|
|
||||||
|
DF200AA120 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
DF200AA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
