Product Summary

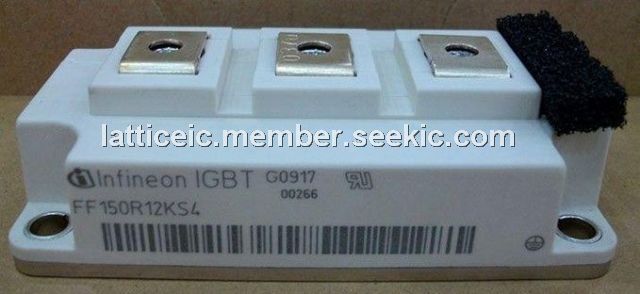

The FF150R12KS4 is a 62mm IGBT module with the fast IGBT2 for high-frequency switching. Applications of the FF150R12KS4 are Medical applications, Motor drives, Resonant inverter applications, Servo drives, UPS systems.

Parametrics

FF150R12KS4 absolute maximum ratings: (1)collector emitter voltage: 1200V; (2)DC-collector current: 150A; (3)repetitive peak collector current: 300A; (4)total power dissipation: 1250W; (5)gate emitter peak voltage: ±20V.

Features

FF150R12KS4 features: (1)collector emitter saturation voltage: 3.20V; (2)gate threshold voltage: 5.5V; (3)gate charge: 1.60μC; (4)internal gate resistor: 2.5Ω; (5)input capacitance: 11nF; (6)reverse transfer capacitance: 0.50nF; (7)collector emitter cut off current: 5.0-mA; (8)gate emitter leakage current: 400nA; (9)SC data: 950A.

Diagrams

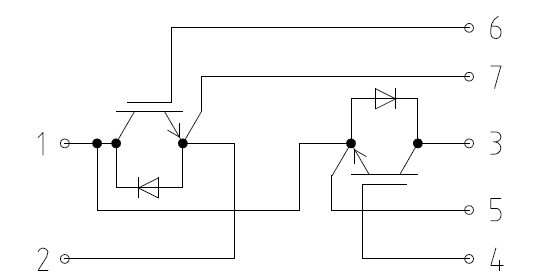

FF150R12KS4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF150R12KS4
FF150R12KS4

Infineon Technologies

IGBT Modules 1200V 150A DUAL

Data Sheet

0-6: $82.62
6-10: $74.36
