Product Summary

The FF400R33KF2C is an IGBT-Module.

Parametrics

FF400R33KF2C absolute maximum ratings: (1) collector-emitter voltage VCES: 1200 V; (2) IC, nom.: 400 A; (3) DC-collector current IC: 580 A; (4) repetitive peak collector current ICRM: 800 A; (5) total power dissipation Ptot: 2000 W; (6) gate-emitter peak voltage VGES: +/- 20 V.

Features

FF400R33KF2C features: (1) VCE sat: 1.70 to 2.15 V; (2) collector-emitter saturation voltage: 2.00 V; (3) gate threshold voltage: 5.0 to 6.5 V; (4) input capacitance Cies: 1.1nF; (5) collector-emitter cut-off current ICES: 5.0mA; (7) gate-emitter leakage current IGES: 400nA.

Diagrams

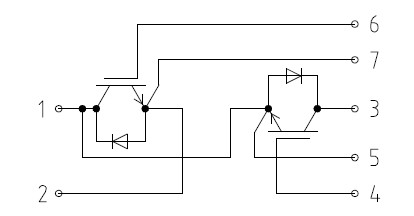

FF400R33KF2C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF400R33KF2C
FF400R33KF2C

Infineon Technologies

IGBT Modules 3300V 400A DUAL

Data Sheet

0-1: $1,521.02
1-4: $1,368.92
