Product Summary

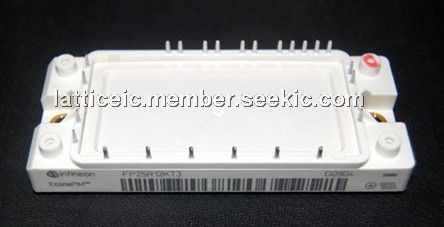

The FP25R12KT3 is an IGBT-inverter.

Parametrics

FP25R12KT3 absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)DC-collector current: 40A; (3)repetitive peak collector current: 50A; (4)total power dissipation: 155W; (5)gate-emitter peak voltage: ± 20V.

Features

FP25R12KT3 features: (1)Collector-emitter saturation voltage: 1.90V; (2)Gate threshold voltage: 5.0V to 6.5V; (3)Gate charge: 0.24μC; (4)Internal gate resistor: 8.0Ω; (5)Input capacitance: 1.80nF; (6)Reverse transfer capacitance: 0.064nF.

Diagrams

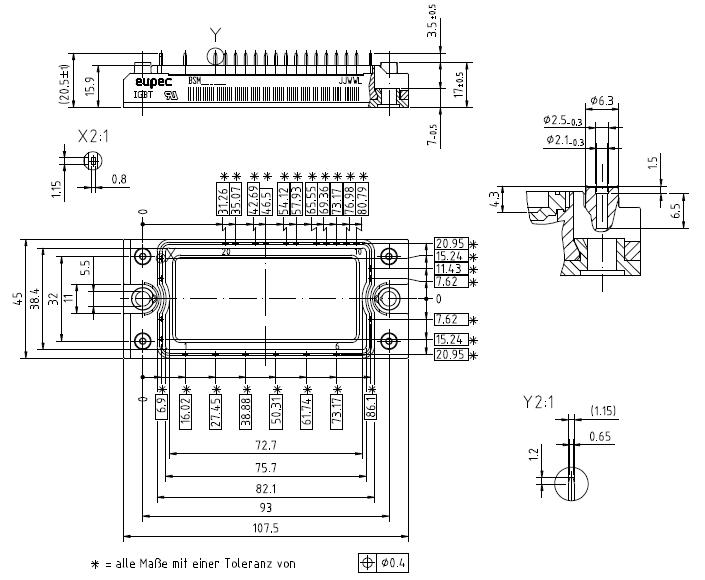

FP25R12KT3 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FP25R12KT3
FP25R12KT3
Infineon Technologies
IGBT Modules N-CH 1.2KV 40A
Data Sheet
0-1: $50.31
1-10: $45.68
