Product Summary

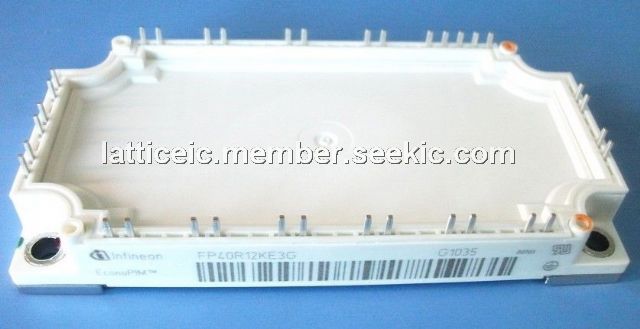

The FP40R12KE3G is an IGBT module.

Parametrics

FP40R12KE3G absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 1600V; (2)maximum RMS current at rectifier output, IRMSmax: 60A; (3)DC forward current, Id: 40A; (4)surge forward current, IFSM: 260A; (5)I2t value, I2t: 340A2s.

Features

FP40R12KE3G features: (1)forward voltage, VF: 1.2V; (2)threshold voltage, V(TO): 0.8V; (3)slope resistance, FT: 10.5m; (4)reverse current, IR: 2mA; (5)lead resistance, terminals-chip, RAA+CC: 5m.

Diagrams

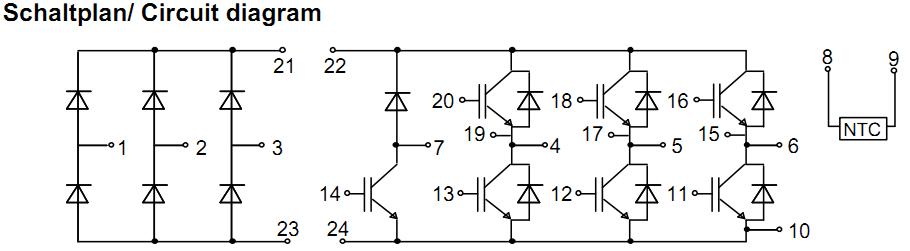

FP40R12KE3G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FP40R12KE3G
FP40R12KE3G
Infineon Technologies
IGBT Transistors 1200V 40A PIM
Data Sheet
0-5: $92.28
5-10: $83.05
