Product Summary
The ISL83485IP is a High Speed or Slew Rate Limited transceiver. It ultilizes slew rate limited drivers which reduce EMI, and minimize reflections from improperly terminated transmission lines, or unterminated stubs in multidrop and multipoint applications. Applications include Factory Automation, Security Networks, Building Environmental Control Systems, Industrial/Process Control Networks and Level Translators.
Parametrics
ISL83485IP absolute maximum ratings: (1)VCC to Ground: 7V; (2)Maximum Junction Temperature (Plastic Package): 150℃; (3)Maximum Storage Temperature Range: -65 to 150℃; (4)Maximum Lead Temperature (Soldering 10s): 300℃.
Features
ISL83485IP features: (1)Operate from a Single +3.3V Supply (10% Tolerance); (2)Interoperable with 5V Logic; (3)High Data Rates up to 10Mbps; (4)Single Unit Load Allows up to 32 Devices on the Bus; (5)-7V to +12V Common Mode Input Voltage Range; (6)Full Duplex and Half Duplex Pinouts; (7)Current Limiting and Thermal Shutdown for driver Overload Protection.

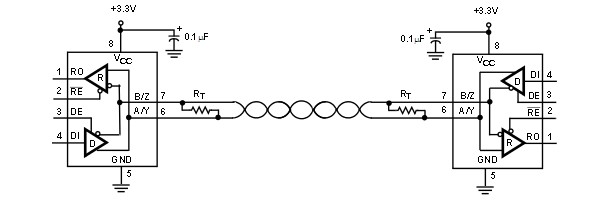

Diagrams

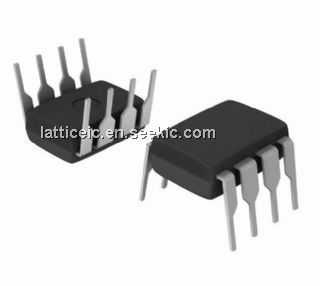

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL83485IP |
|
IC TXRX RS485/422 3.3V LP 8-D |
Data Sheet |
Negotiable |
|
||||||||||
