ISL8485IB

transceiver, Low Current Shutdown, 1nA, 7V, +5V, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.60 / Piece
51 ~ 500 :	0.45 / Piece
501 ~ 5000 :	0.30 / Piece

PartNumber:: ISL8485IB

Brand:: Intersil Corporation - Intersil | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-18

From Other Seller

Part Number:ISL8485IB
US $0.30 - 0.60
Quantity:

piece

Product Summary

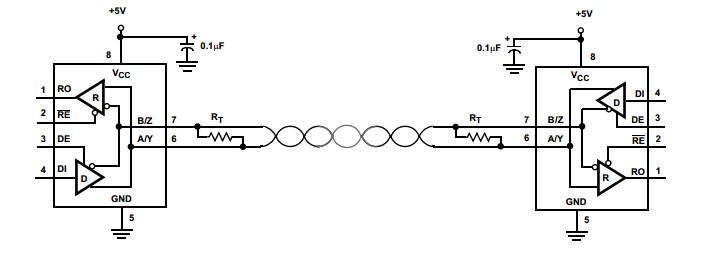

The ISL8485IB is a RS-485/RS-422 device. It is a BiCMOS 5V powered, single transceiver wihich meets both the RS-485 and RS-422 standards for balanced communication. Unlike competitive devices, the ISL8485IB is specified for 10% tolerance supplies (4.5V to 5.5V). Applications include Factory Automation, Security Networks, Building Environmental Control Systems and Industrial/Process Control Networks.

Parametrics

ISL8485IB absolute maximum ratings: (1)VCC to Ground: 7V; (2)Input/Output Voltages A, B, Y, Z: -8V to +12.5V; (3)Input/Output Voltages RO: -0.5V to (VCC +0.5V); (4)Maximum Junction Temperature (Plastic Package): 150℃; (5)Maximum Storage Temperature Range: -65 to 150℃; (6)Maximum Lead Temperature (Soldering 10s): 300℃.

Features

ISL8485IB features: (1)Specified for 10% Tolerance Supplies; (2)Class 3 ESD Protection (HBM) on all Pins; (3)High Data Rate; (4)Single Unit Load Allows up to 32 Devices on the Bus; (5)1nA Low Current Shutdown Mode (ISL8483); (6)Low Quiescent Current; (7)-7V to +12V Common Mode Input Voltage Range; (8)30ns Propagation Delays, 5ns Skew; (9)Full Duplex and Half Duplex Pinouts; (10)Operate from a Single +5V Supply (10% Tolerance).
