Product Summary
The ISL8487EIP is a low power, high speed or slew rate limited, RS-485/RS-422 transceiver. TheISL8487EIP is ESD protected, fractional unit load (UL), BiCMOS, 5V powered, single transceiver that meet both the RS-485 and RS-422 standards for balanced communication. Each driver output/ receiver input is protected against ±15kV ESD strikes, without latch-up. Unlike competitive devices, the ISL8487EIP is specified for 10% tolerance supplies (4.5V to 5.5V). Applications include High Node Count Networks, Automated Utility Meter Reading Systems, Factory Automation, Security Networks, Building Environmental Control Systems and Industrial/Process Control Networks.
Parametrics
ISL8487EIP absolute maximum ratings: (1)VCC to Ground:7V; (2)Input Voltages DI, DE, RE: -0.5V to (VCC +0.5V); (3)Input/Output Voltages A/Y, B/Z: -8V to +12.5V; (4)Input/Output Voltages RO: -0.5V to (VCC +0.5V).
Features
ISL8487EIP features: (1)RS-485 I/O Pin ESD Protection; (2)Fractional Unit Load Allows up to 256 Devices on the Bus; (3)Specified for 10% Tolerance Supplies; (4)Slew Rate Limited Versions for Error Free Data Transmission; (5)Low Quiescent Supply Current; (6)-7V to +12V Common Mode Input Voltage Range; (7)Three State Rx and Tx Outputs; (8)Half Duplex Pinouts; (9)Operate from a Single +5V Supply (10% Tolerance); (10)Current Limiting and Thermal Shutdown for Driver Overload Protection; (11)Pb-Free Plus Anneal Available (RoHS Compliant).

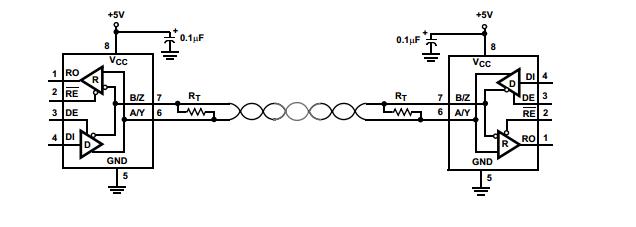

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL8487EIP |
|
IC TXRX RS-485/422 ESD 8-DIP |
Data Sheet |
Negotiable |
|
||||||
|
ISL8487EIPZ |
|
IC TXRX RS-485/422 5V 8-PDIP |
Data Sheet |
|
|
||||||
