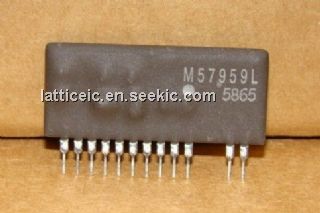

M57959L

IGBT module, Two supply drive topology, 50 Volts, 20 mA, ZIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~25.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	25.00 / Piece
11 ~ 50 :	15.00 / Piece
51 ~ 100 :	8.00 / Piece

PartNumber:: M57959L

Brand:: Mitsubishi Electric Semiconductor - MES | Pack: ZIP | D/C: 11+

Availability:: Supply Ability: 10/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-25

From Other Seller

Part Number:M57959L
US $8.00 - 25.00
Quantity:

piece

Product Summary

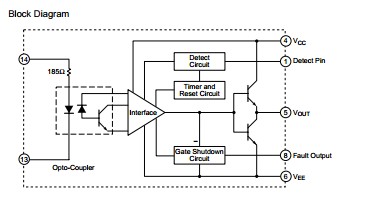

The M57959L is a hybrid integrated circuit designed for driving n-channel IGBT modules in any gate amplifier application. This device operates as an isolation amplifier for these modules and provides the required electrical isolation between the input and output with an opto-coupler. Short circuit protection is provided by a built in desaturation detector. A fault signal is provided if the short circuit protection is activated. To drive IGBT modules for inverter, AC Servo systems, UPS, CVCF inverter, and welding applications.

Parametrics

M57959L absolute maximum ratings: (1)Input Voltage: -1 ~ 7 Volts; (2)Output Voltage: VCC; (3)Output Current-IOHP: -2A; (4)Output Current-IOLP: 2A; (5)Output Current: 0.2A; (6)Isolation Voltage: 2500Volts; (7)Junction Temperature: 85℃C; (8)Operating Temperature: -20 ~ 60℃; (9)Storage Temperature: -25 ~ 100℃; (10)Fault Output Current: 20 mA; (11)Input Voltage: 50 Volts.

Features

M57959L features: (1)Built in high CMRR optocoupler; (2)Electrical Isolation between input and output with optocouplers; (3)TTL compatible input interface; (4)Two supply drive topology; (5)Built in short circuit protection circuit with a pin for fault output.
